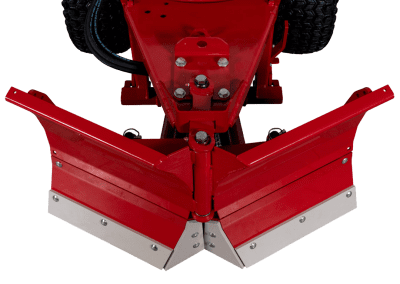

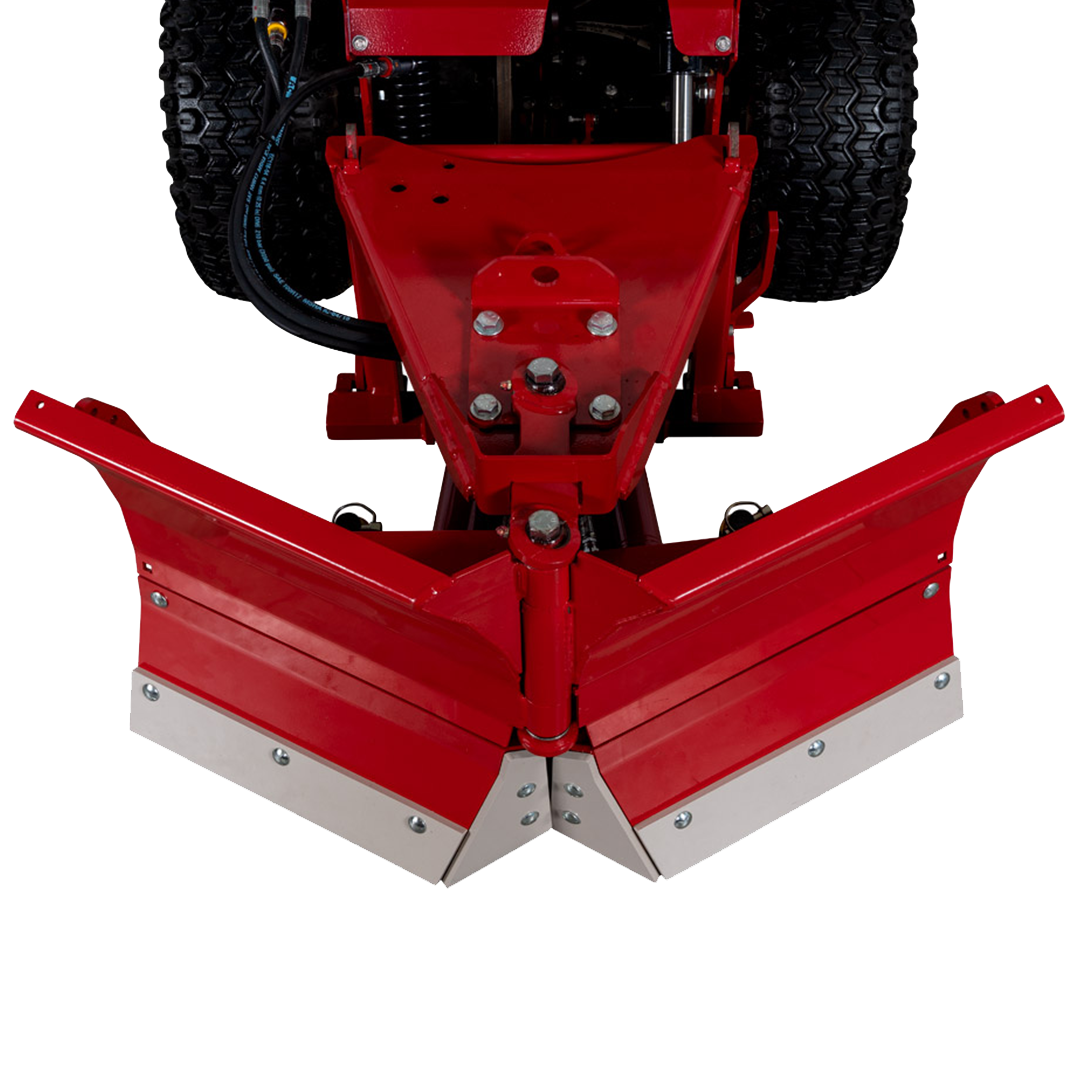

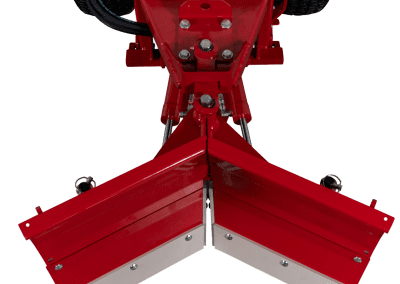

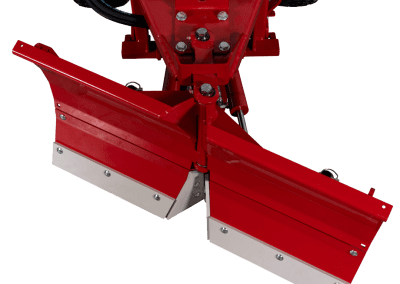

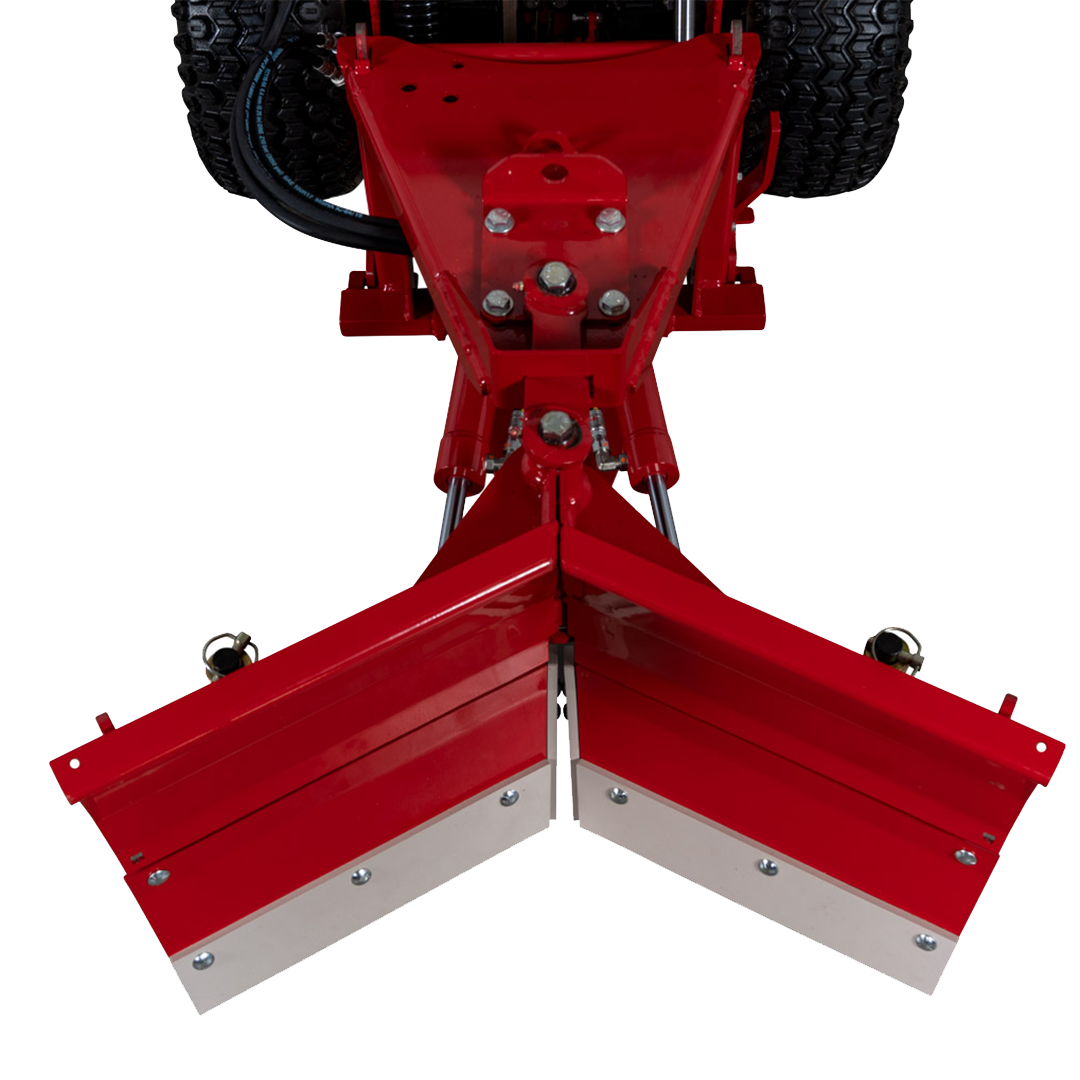

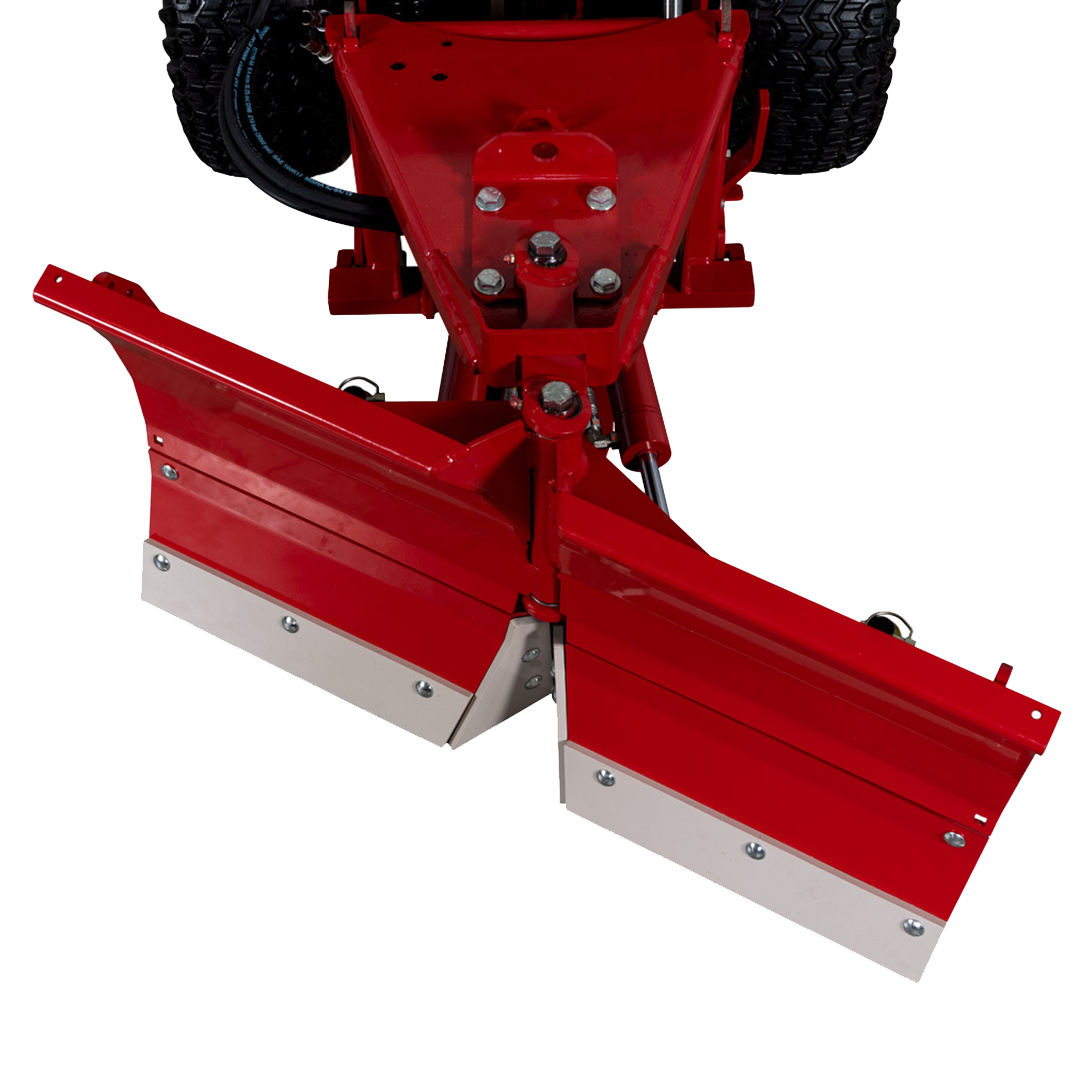

Ventrac SSV V-Blade Snow Plow
Ventrac SSV V-Blade Snow Plow
The NV360, 36″ V-Blade brings some exciting features to the SSV platform.
The blade features a trip-edge that rotates and translates simultaneously in order to function even in a direct impact in the V position. This is a unique feature from any other V blade and one that makes this the best functioning sidewalk snow removal blade available.
Just like our ND straight blades, the NV360 also adds oscillation to the main structure in order to follow inconsistencies in the pavement.
This V-Blade is perfect for clearing snow that is deeper than what a straight blade can handle. And with the V position, it allows operators to travel much faster and work even more efficiently. With fully active wings, it also makes relocation of snow piles easier with the scoop position.
Get Quick Quote
More Info
Hydraulic Power Angle: Independent cylinders
Blade Wing Selection: Electric Solenoid
Spring Trip Mechanical: On/Off
Blade Wing Angle: (Forward/Backward) 30 Degrees
Adjustable Skid Shoes: Standard
Dimensions
Length: 24 inches (61 cm)
Overall Width: 36 inches (91.4 cm)
Width, Wings Swept Back: 36 inches (91.4 cm)
Width, Wings Swept Forward: 32 inches (81.3 cm)
Height: 21.5 inches (54.6 cm)
Weight: 255 lbs (115.6 kg)
All specifications subject to change without notice or obligation
Additional information
| Weight | 255 lbs |
|---|---|
| Dimensions | 24 × 36 × 21.5 in |
| Attachment Type | |
| Series: |
The NV360, 36″ V-Blade brings some exciting features to the SSV platform.
The blade features a trip-edge that rotates and translates simultaneously in order to function even in a direct impact in the V position. This is a unique feature from any other V blade and one that makes this the best functioning sidewalk snow removal blade available.
Just like our ND straight blades, the NV360 also adds oscillation to the main structure in order to follow inconsistencies in the pavement.
This V-Blade is perfect for clearing snow that is deeper than what a straight blade can handle. And with the V position, it allows operators to travel much faster and work even more efficiently. With fully active wings, it also makes relocation of snow piles easier with the scoop position.
