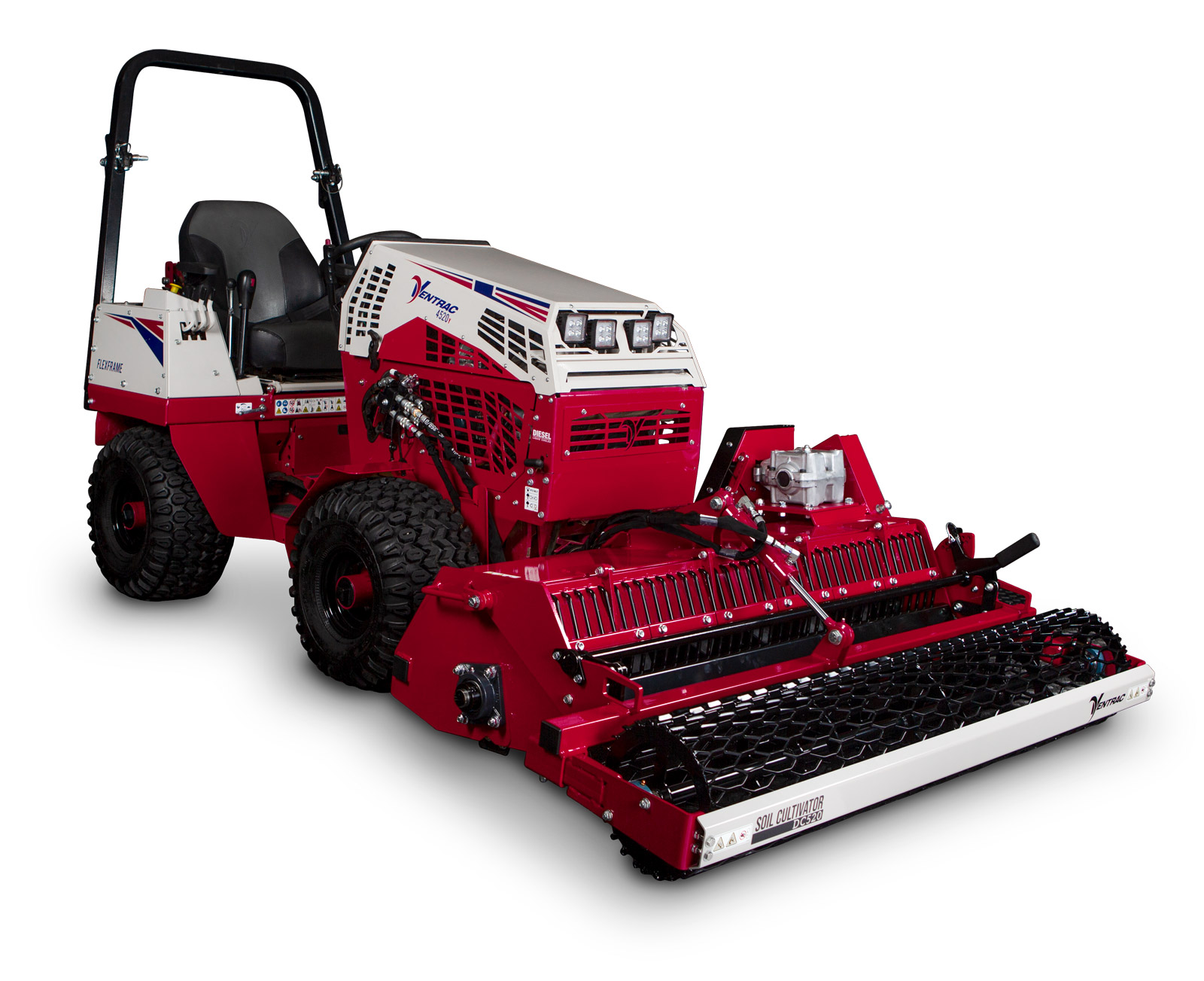

Ventrac Soil Cultivator

Ventrac Soil Cultivator

The DC520 Soil Cultivator prepares bare soil by cultivating a soft and uniform seedbed for the best possible direct-seeding results. This attachment works well to recondition hard, compacted soil into a better surface for more successful and consistent germination rates.

The Soil Cultivator consists of 4 main components that work simultaneously to process high volumes of soil and provide the ultimate seedbed. Cultivator Tines start by pulverizing the soil and separating the debris. Next, the Separator Tines sift and bury rock and other large debris below the prep surface. Next, the Distribution Blade carries the sifted soil and distributes it evenly across the working surface. And the Perforated Roller creates a pocketed surface for seed and presses small debris below grade.

Quick Quote

Name(Required)

More Info

Depth of Till: ≤5 inches (≤12.7 cm)
Working Speed: 1–3 mph (1.6–4.8 kph)

Dimensions
Height: 25.25 inches (40.6 cm)
Width (with front roller): 65.875 inches (167.3 cm)
Width (without front roller): 60.5 inches (153.7 cm)
Working Width: 52 inches (132 cm)
Weight: 630 lbs (285.75 kg)

All specifications subject to change without notice or obligation

Additional information

Weight630 lbs
Dimensions52 × 25.25 in
Attachment Type

Series:

The DC520 Soil Cultivator prepares bare soil by cultivating a soft and uniform seedbed for the best possible direct-seeding results. This attachment works well to recondition hard, compacted soil into a better surface for more successful and consistent germination rates.

The Soil Cultivator consists of 4 main components that work simultaneously to process high volumes of soil and provide the ultimate seedbed. Cultivator Tines start by pulverizing the soil and separating the debris. Next, the Separator Tines sift and bury rock and other large debris below the prep surface. Next, the Distribution Blade carries the sifted soil and distributes it evenly across the working surface. And the Perforated Roller creates a pocketed surface for seed and presses small debris below grade.
