Ventrac Boom Mower

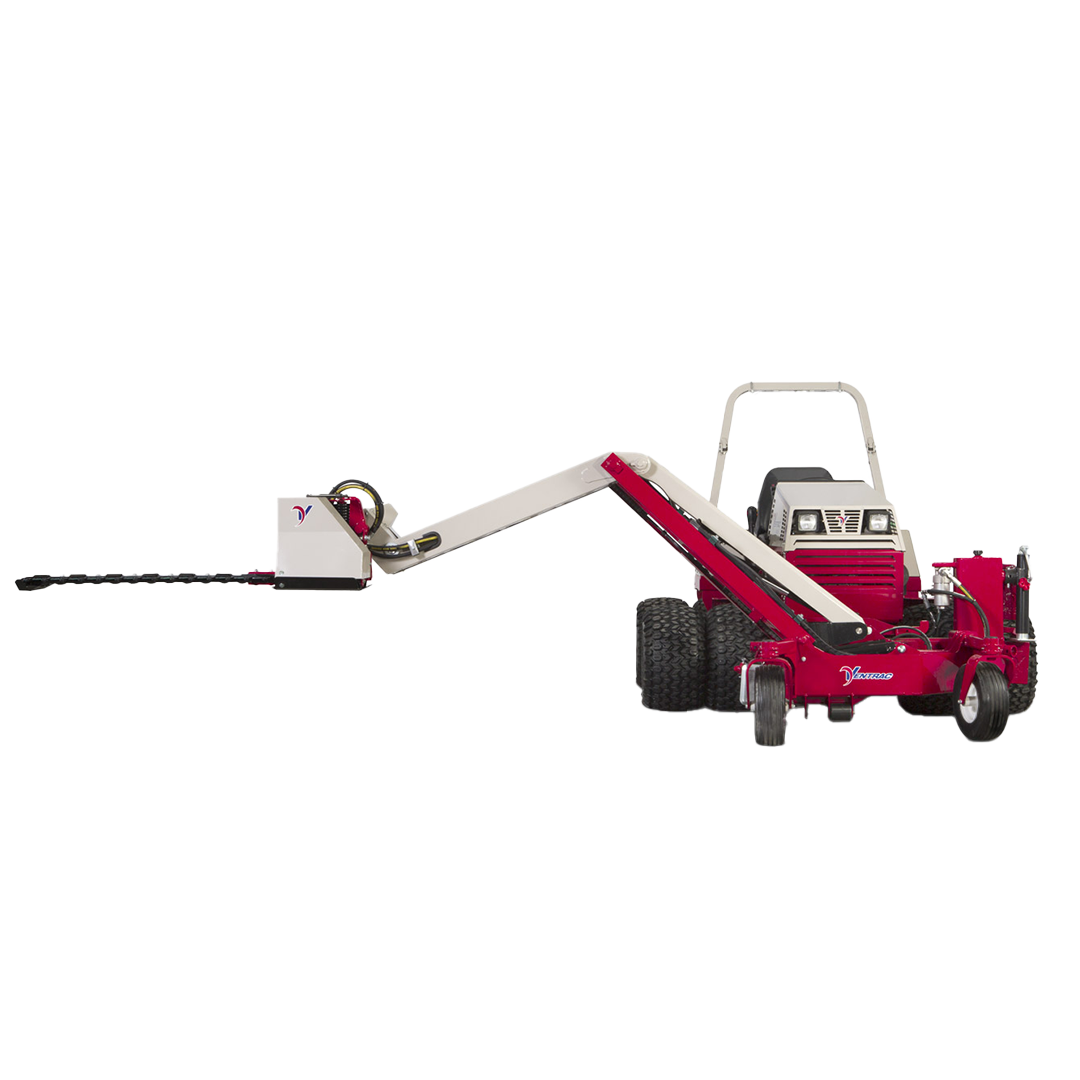

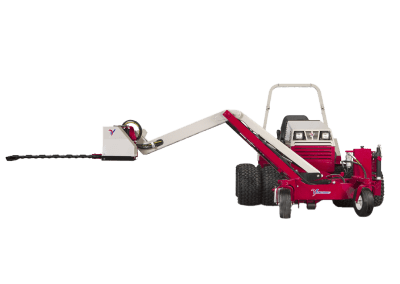

Ventrac Boom Mower

The new Ventrac Boom Mower is unquestionably the easiest and most productive boom mower in its class. Designed to deliver unprecedented levels of efficiency for property managers who want to maintain difficult areas with minimal labor, the Boom Mower has the stability and reach to manage vegetation further away from the machine than other equipment. With this new attachment, mowing around water features, trimming hedges, and clearing trails has never been so easy.

Quick Quote

Name(Required)

More Info

Standard Features:
• Out front design increases visibility
• Maintains head angle when extending or retracting boom arms 39” (99.1 cm) double action sickle bar

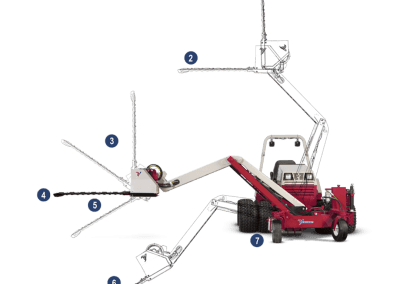

• Head angle ranging from 45° below horizontal to 90° vertical (135° total range)
• Ability to operate on 10° slopes when used with power unit equipped with
single wheels or 18° slopes when used with power unit equipped with
dual wheels

Specifications
Overall Height: 87 1/2” (222.3 cm)
Overall Length: 58” (147.3 cm)
Overall Width: 63” (160 cm)
Weight: 880 lbs (399.2 kg)
Cutting Width: 39” (99.1 cm)
Material Cut Diameter: 1/2” (13 mm)
Vertical Reach (from ground): 142” (361 cm)
Horizontal Reach (outside of single wheels): 115” (292 cm)
Horizontal Reach (outside of dual wheels): 103” (262 cm)
Max Flat Top Cut (from ground): 82” (208 cm)

All specifications subject to change without notice or obligation

Additional information

Weight880 lbs
Dimensions58 × 63 × 87.5 in
