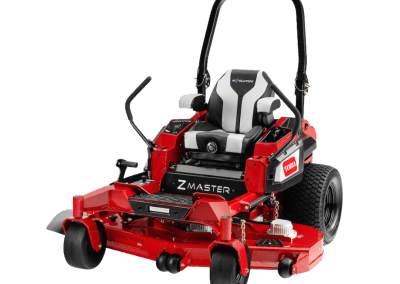

Toro Z Master Revolution 52 in. (132 cm)
Toro Z Master Revolution 52 in. (132 cm)
The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.
Get Quick Quote
More Info
• Optimize machine feel and response, including speed control, with patent-pending software controls.
• Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Optimize run time and quality of cut with the adjustable deck rake.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications:
Battery Capacity: 23.4kWh
Battery Charge Time (hours): 8
Battery Power: Toro HyperCell
Battery Run Time (Hours): 4.5 - 7+ hours
Blade Design: 0.204 in. / 0.518 cm
Blade Tip Speed: Adjustable
CARB Compliant: CARB Compliant
Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Charge Type: 3.3kW 240V Standard; 1.2 kW 120v Optional
Comfort Platform: Standard Suspension
Deck Design: 52" (132 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Material: 7 Gauge High-Strength Steel
Deck Size: 52 in / 132 cm
Discharge Chute: Rubber
Drive Tires: Super Turf 24 in. x 10.5 in. x 12 in. (61 cm x 26.7 cm - 30.5 cm)
Forward Ground/Transport Speed: Up to 12.0 mph / 19.3 kph
Fuel Type: Battery
Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Ignition: Electric
Lighting: LED Headlights
Motor: Mid-Mount Commercial High Torque
Number of Batteries Included: 10
Product Features: Battery Powered, CARB Compliant, Hour Meter
Product Type: Zero Turn Mowers
Product Use: Commercial
Roll-Over Protection (ROPS): Folding; Standard
Seat: Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings: Maintenance-free
Spindle Housing: 9 in / 22.9 cm Diameter Die-Cast Aluminum w/ Blade Retainer
Start Type: Electric
Transmission: Planetary Gearset
Additional information
| Fuel Type | |
|---|---|
| Deck Width | |
| Is CARB Compliant? | |
| Series: | |
| Revolution Series |
The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.
