Toro Reelmaster® 3100-D with Sidewinder

Toro Reelmaster® 3100-D with Sidewinder

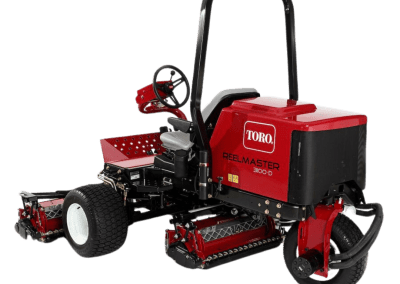

The Reelmaster® 3100 is a revolutionary triplex mower designed for superior traction and cutting unit performance on all types of turf. The Sidewinder® cutting unit control system can be shifted right and left, on the fly, to vary the tire tracks. A powerful Kubota® 21.5 hp (16 kW) engine and the Series/Parallel 3WD traction drive system provide the power and traction to get the mowing job done quickly. The operator area is designed for optimal operator view and all day mowing comfort. And mechanics will appreciate the fast and easy access to all service items.

Quick Quote

Name(Required)

More Info

• Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

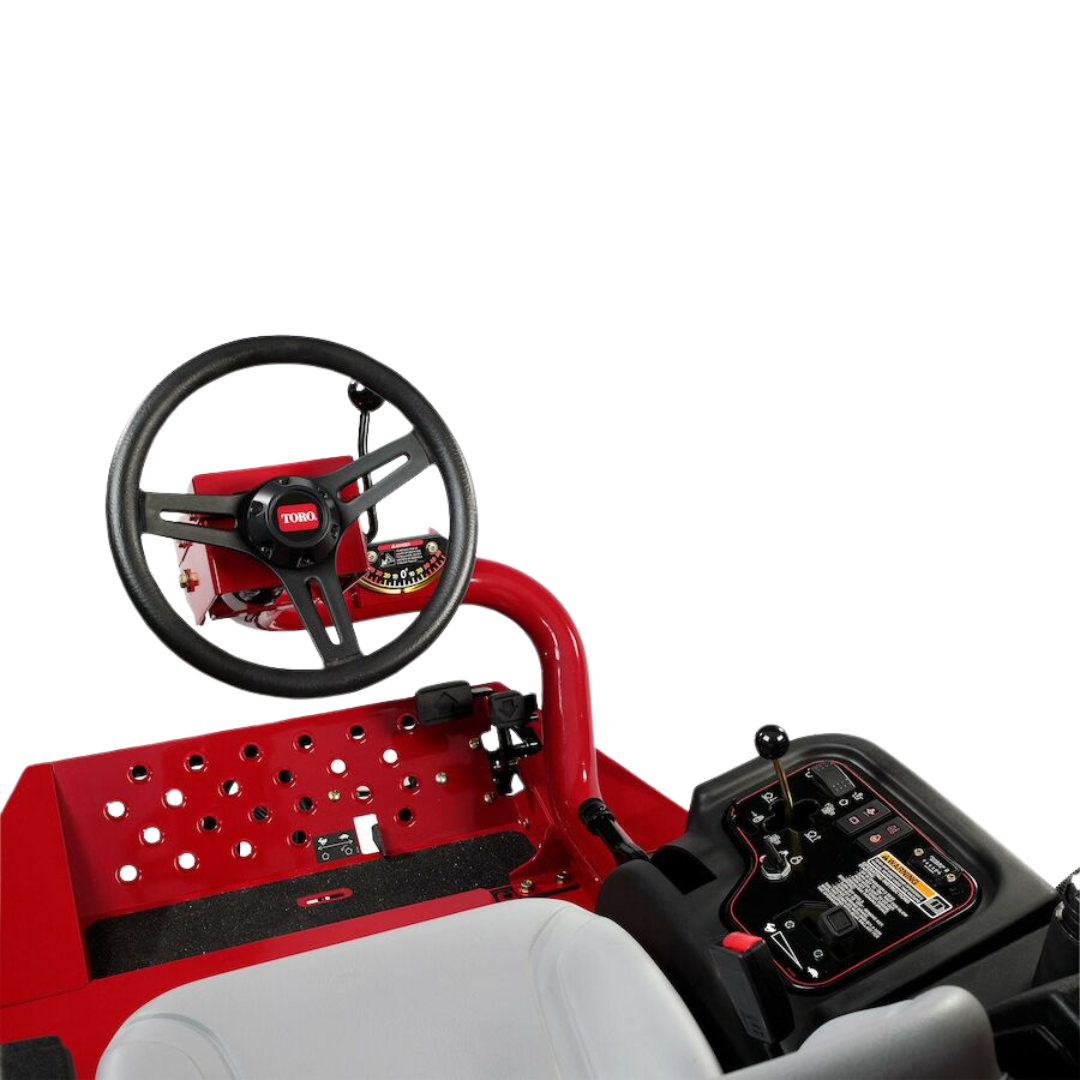

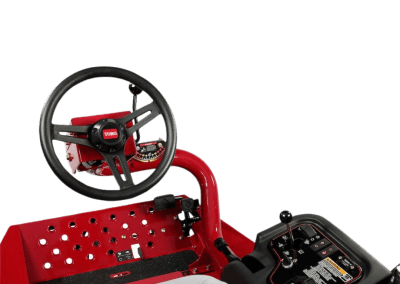

• The operator sits out-front on the Reelmaster® 3100-D for better mowing visibility and easier access getting on and off the machine. Engine noise, vibration, and exhaust are all located behind the operator.

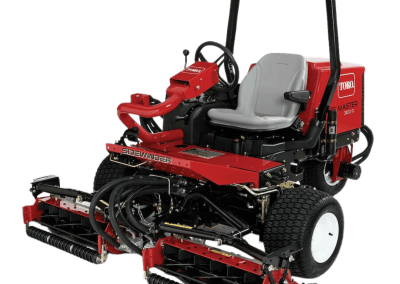

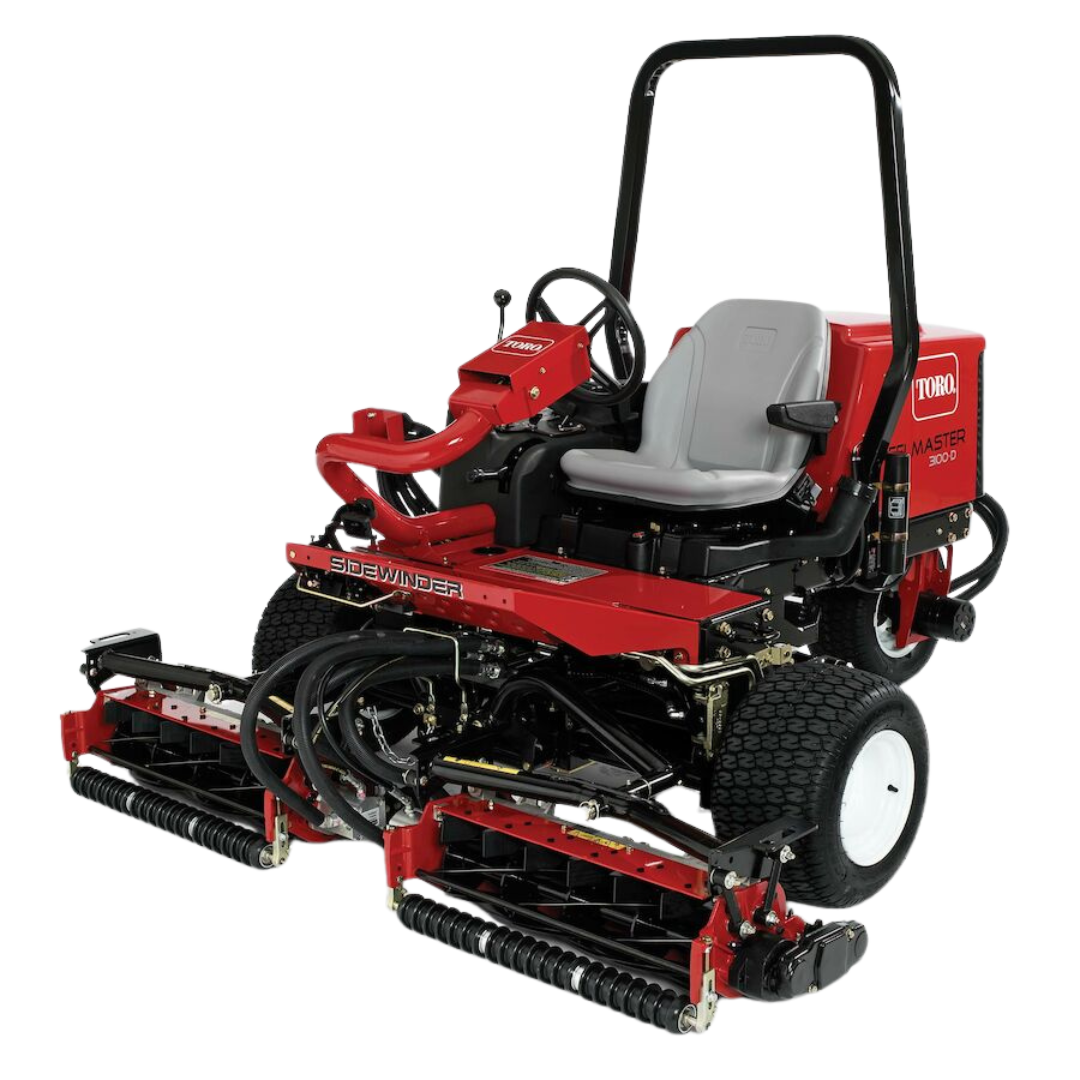

• Sidewinder cutting units shift left and right a total of 24 inches (61 cm). This allows the tire tracks to be shifted within the mowing path to reduce wear on the turf.

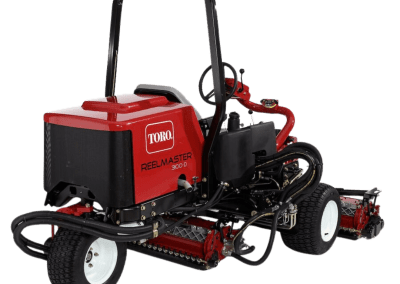

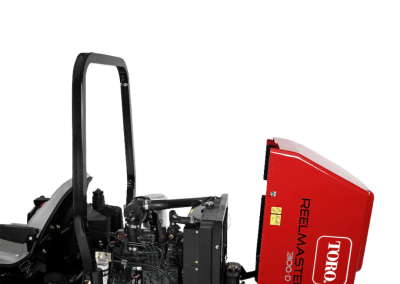

• With the engine located in the rear of the machine, the Reelmaster® 3100-D is easy to service. Open the engine compartment to have access to all filters, fluids and engine components for fast preventative maintenance.
• The Reelmaster® 3100-D is available in a 72" or 85" (183 cm or 216 cm) width of cut. With a choice of 5, 8, and 11 blade reels and adjustable reel speed control, this mower can be configured to meet all mowing applications.
• With a 21.5 hp (16 kw) Kubota® Diesel Engine, the Reelmaster® 3100-D has the power to climb and power to cut through difficult mowing conditions.
• There's no need to worry about mowing around objects while traversing hills, even in wet terrain. The parallel hydraulic flow between front and rear wheels assures full-time 3-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.

Specifications
Air Filter: Heavy-duty, radial seal air cleaner.
Armrests: Standard
Battery: 12V
Bedknife Adjustment: Dual Precision Adjustment (DPA), bedknife to reel.
Blade Style/Type: Reel
Blade Type (Description): EdgeSeries™ DPA radial reels.
Cab Unit: N/A
Clip Frequency/Backlapping: Manually controlled, variable reel speed for control of clip frequency. Standard on-board backlapping.
Controls: Forward and reverse traction control pedals, mow/transport lever, hand activated park brake, ignition key switch, tilt steering wheel lock, PTO switch, throttle, joystick control for cutting unit raise and lower (and for moving cutting units side-to-side on Sidewinder equipped models), cutting unit transport lock, reel speed and backlap control knob.
Cooling System Description: Rear mounted radiator.
Cup Holder: Standard
Cutting Unit Accessories: Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower: Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Offset: Maximum 15" (38 cm) in 72" (183 cm) width of cut. Maximum 22" (56 cm) in 85" (216 cm) width of cut.
Cutting Unit Type/Configuration: Three hydraulically-driven, balanced, 7" (17.8 cm) diameter reels. Cutting units interchangeable to all three positions. Operator controlled moveable cutting units travel ±12" (30 cm) left or right from center; total of 24" (61 cm) of infinite variability. 72" (183 cm), or 85" (216 cm) width of cut dependent on cutting unit selection.
Drivetrain: Diesel
Electrical System: 12-volt, 585 cold cranking amps at 0 deg. F (-18 deg. C), 40 amps with regulator/rectifier.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 7.5 U.S. gal. (28 .4 L)
Fuel Filter: Fuel filter with fuel/water separator with visible bowl.
Gauges/Instrumentation: Hour meter, fuel gauge, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Speed - Forward: 0 - 9 mph (0 - 14 km/h)
Ground Speed - Reverse: 0 - 4 mph (0 - 6.4 km/h)
Height: 76" (193 cm) with ROPS
Height of Cut Range: Floating Position (Standard)
8-Blade: 0.5" - 2.0" (13 mm - 51 mm)
11-Blade: 0.25" - 0.75" (6 mm - 19 mm)
Fixed Position
8-Blade: 1.25" - 2.0" (32 mm - 51 mm)
Hydraulic Fluid Capacity: 6 U.S. gal. (22.7 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable: No
Interlocks: Traction pedal, operator presence in seat, PTO engage or disengage, and cutting unit mow or transport safety interlock switches.
Lighting: Optional
Main Frame/Chassis: Formed steel, welded steel and steel tubing.
Max Slope Angle: Refer to operator's manual.
Mowing Speed: 0 - 6 mph (0 - 10 km/h)
Number of Blades: 11, 5, 8
Oil Capacity: 3.5 U.S. qt. (3.3 L)
Oil Cooler Description: Pressurized lubrication system with 3.5 U.S. qt. (3.3 L) capacity.
Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
Parking/Service Brakes: Hydrostatic service brake, hand-operated parking brake.
Power Steering: Yes
Power Train (Engine Description): Kubota® liquid-cooled diesel, 3-cylinder, 21.5 hp (16 kW) net @ 2500 RPM. High idle: 2,600 rpm, Low idle: 1,400 rpm (+/- 50 rpm). 68.5 cu. in. (1123 cm) displacement. Tier 4 and Stage V compliant.
Product Length: 93" (248 cm)
Reel Diameter: 7 in. (17.8cm)
Reel/Cylinder Drive: Hydraulic
Rollers: Full roller standard on rear of cutting unit and plastic front Wiehle roller.
Safety/Operator Safety: Two post ROPS and retractable seat belt standard.
Seat: Two-piece premium commercial two-tone grey vinyl with two arm rests, fore/aft adjustment.
Sidewinder: Yes
Starting: Switch
Steering System Description: Power steering with tilt steering wheel.
Tires - Front: 20" x 12" - 10", 4-ply, Turf Tread
Tires - Rear: 20" x 10" - 10", 4-ply, Turf Tread
Tool Box: Optional
Traction Drive: 3WD
Traction Drive (System): Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
Transport Width: 80" (203 cm) in 72" (183 cm) WOC, 92" (234 cm) in 85" (216 cm) WOC
Weight: with 27-inch Cutting Units: approx. 1,950 lbs. (885 kg)
Wheelbase: 56" (142 cm)
Width of Cut: 72" (183 cm) or 85" (216 cm)
