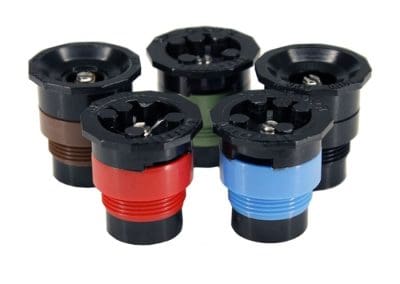

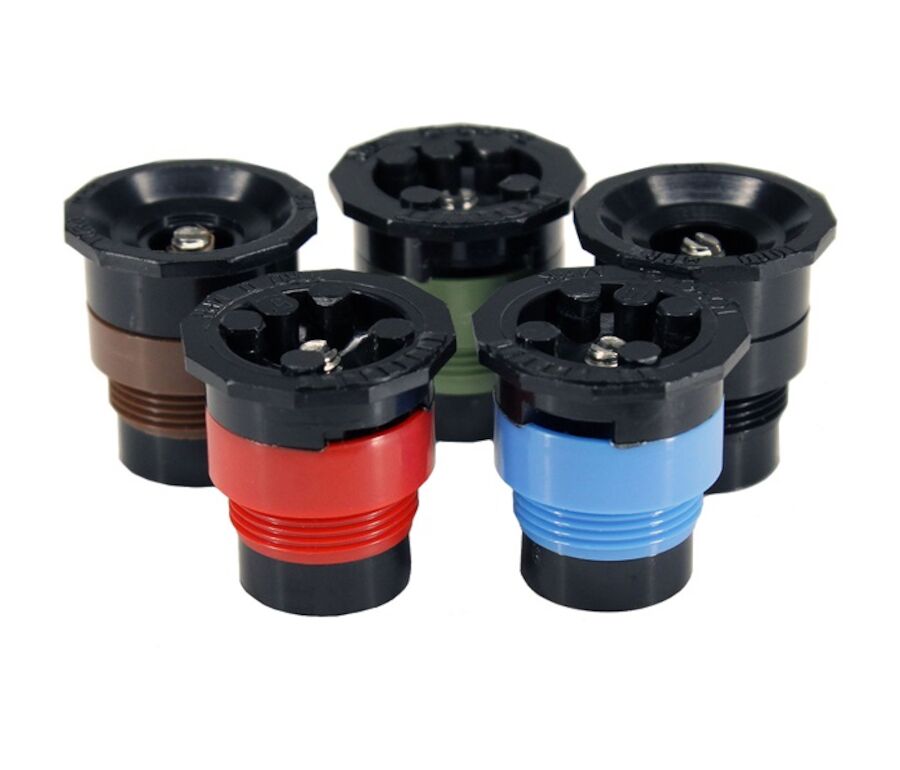

Toro MPR Plus Spray Nozzles

Toro MPR Plus Spray Nozzles

Toro MPR Plus fixed spray nozzles make system design and installation easier than ever. Featuring five color-coded radii and Specialty strip models, the Toro MPR Plus nozzles operate at a matched precipitation rate, allowing design flexibility without concern for not meeting the demands of the landscape.

Quick Quote

Name(Required)

More Info

• Five levels of trajectory to ensure optimal performance – 5’ at 5°, 8’ at 10°, 10’ at 17°, 12’ at 24°, and 15’ at 28°. Available with integrated Pressure Compensation ensures optimal nozzle performance
• Available in radii of 5’, 8’, 10’, 12’, and 15, and Specialty corner and side strip patterns. Adjustment screw allows up to 25% radius reduction with MPR for ideal water distribution

Specifications
Flow: 0.2 to 17.3 L/min (0.05 - 4.58 GPM)
Pattern: Quarter (90°), Third (120°), Half (180°), Two-thirds (240°), Three-quarters (270°), Full (360°), and Specialty
Radius: 1,5 - 4,6m (5’-15’)
Recommended Operating Pressure: 30 PSI

Additional information

Radius

, ,

Toro MPR Plus fixed spray nozzles make system design and installation easier than ever. Featuring five color-coded radii and Specialty strip models, the Toro MPR Plus nozzles operate at a matched precipitation rate, allowing design flexibility without concern for not meeting the demands of the landscape.
