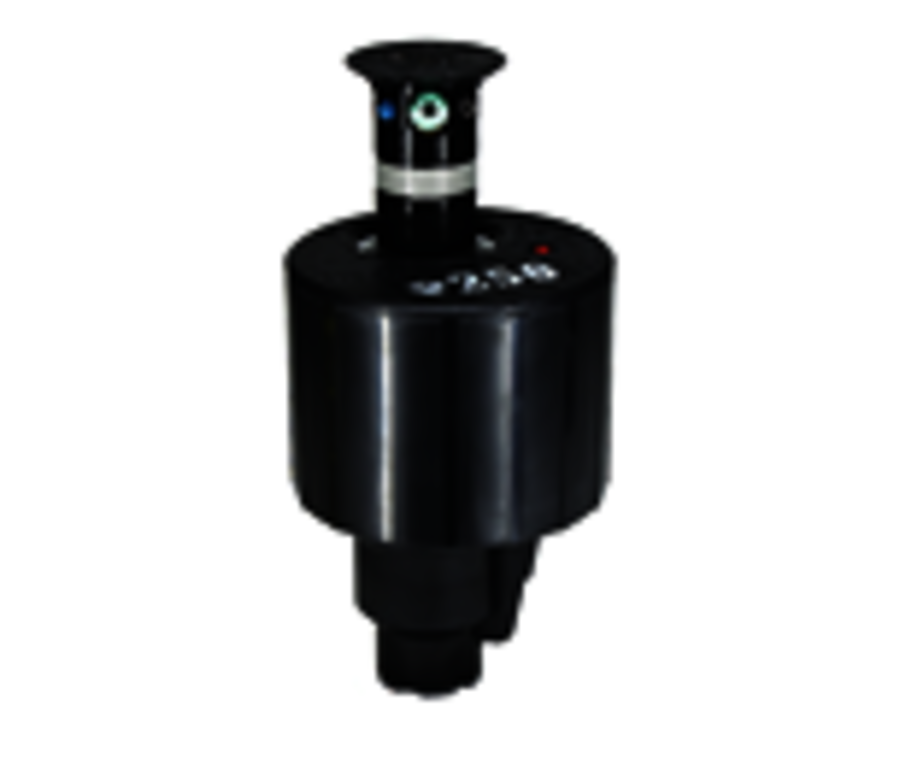

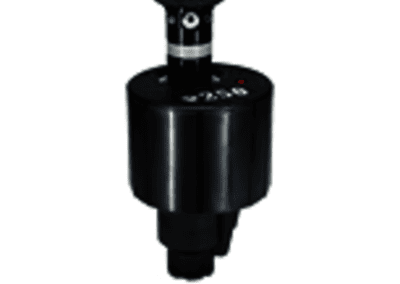

Toro INFINITY® 35-6/55-6 Series Golf Rotors

Toro INFINITY® 35-6/55-6 Series Golf Rotors

With the industry’s largest selection of high performance nozzles and Trujectory® adjustment INFINITY® 35-6/55-6 Series Sprinklers with SMART ACCESS® allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.

Quick Quote

Name(Required)

More Info

• Industry's Largest Nozzle Selection
• Hot Spot Watering
• Durable stainless steel, engineering plastic and brass construction for reliable performance in the most demanding environments

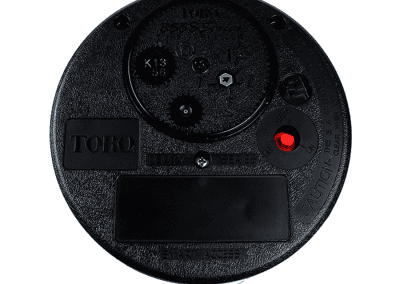

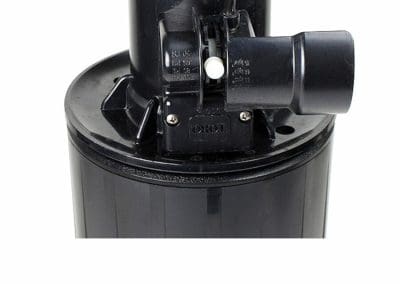

• True Part and Full-Circle in One – (40° - 330° part circle)
• One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.

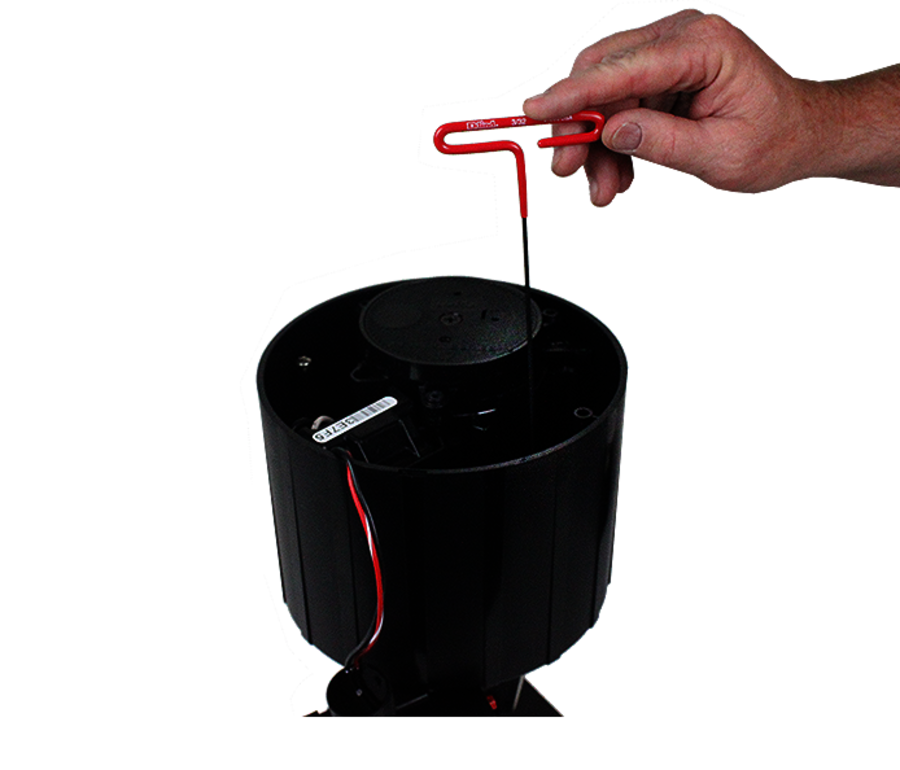

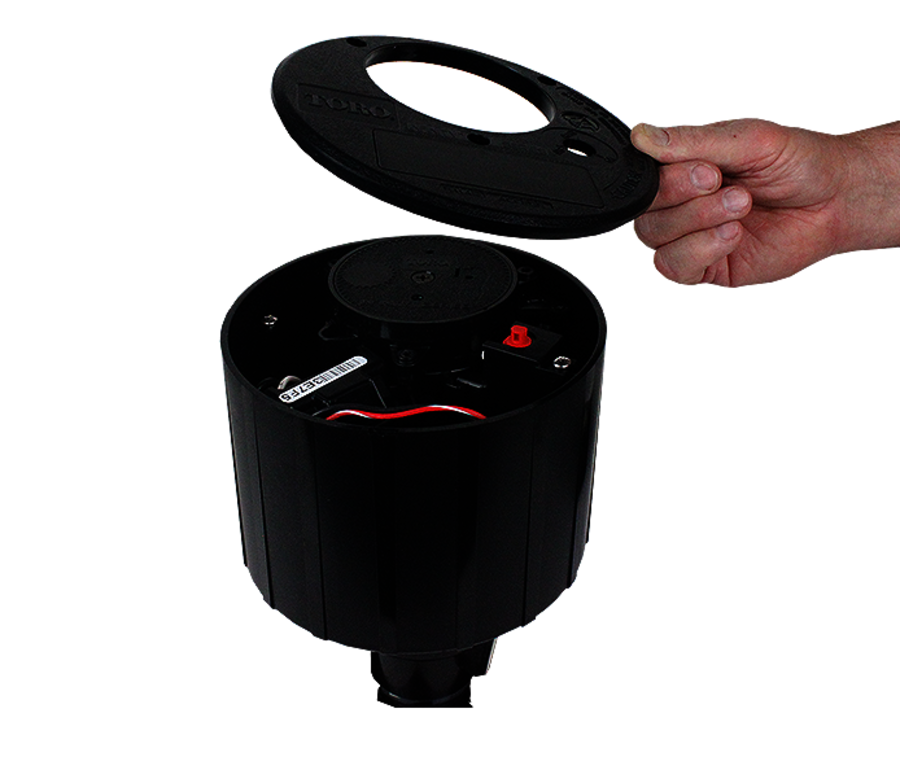

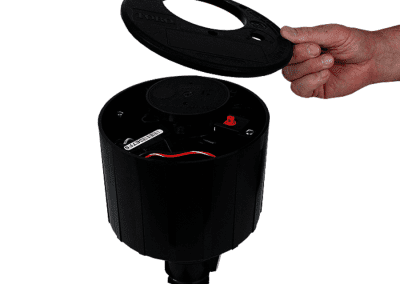

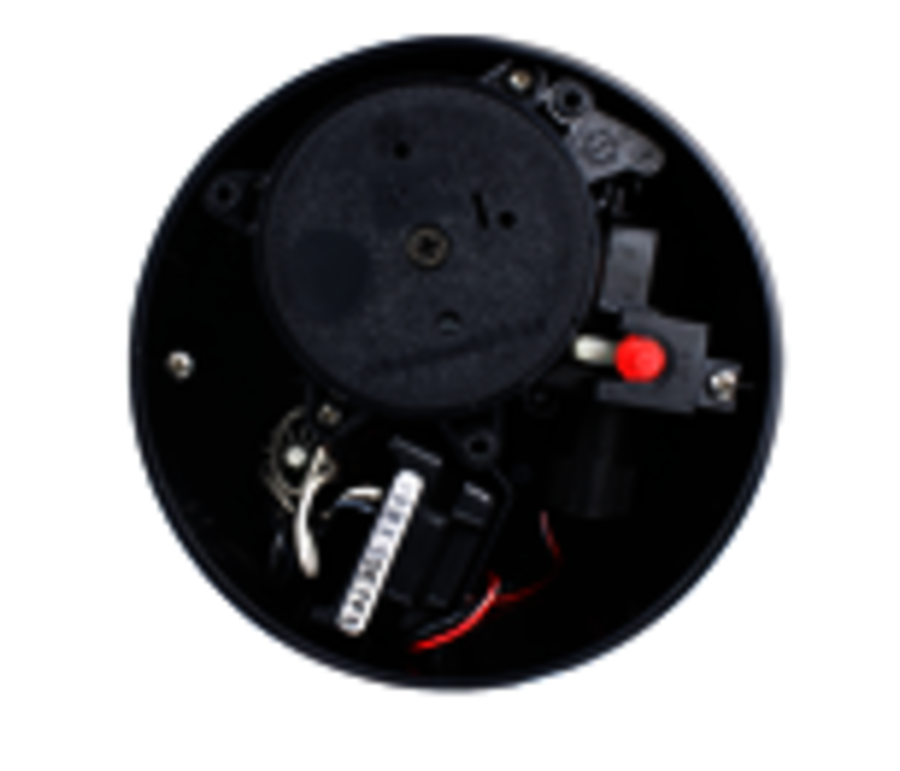

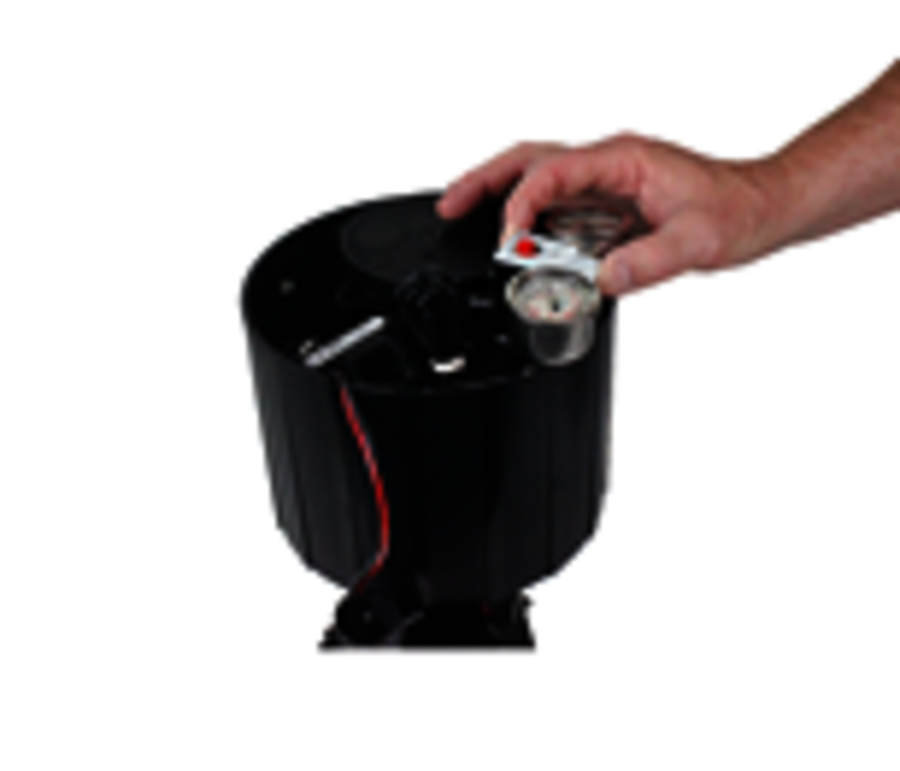

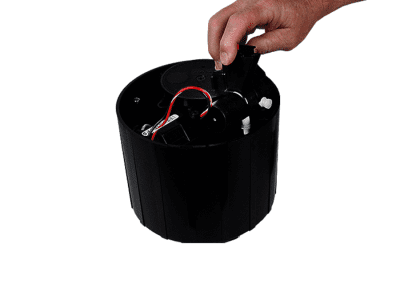

• Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
• Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!

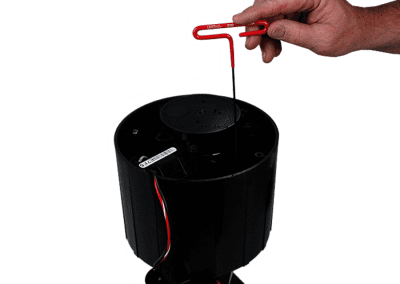

• Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.

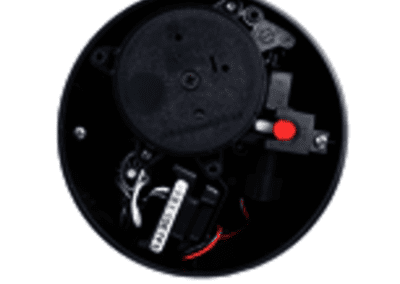

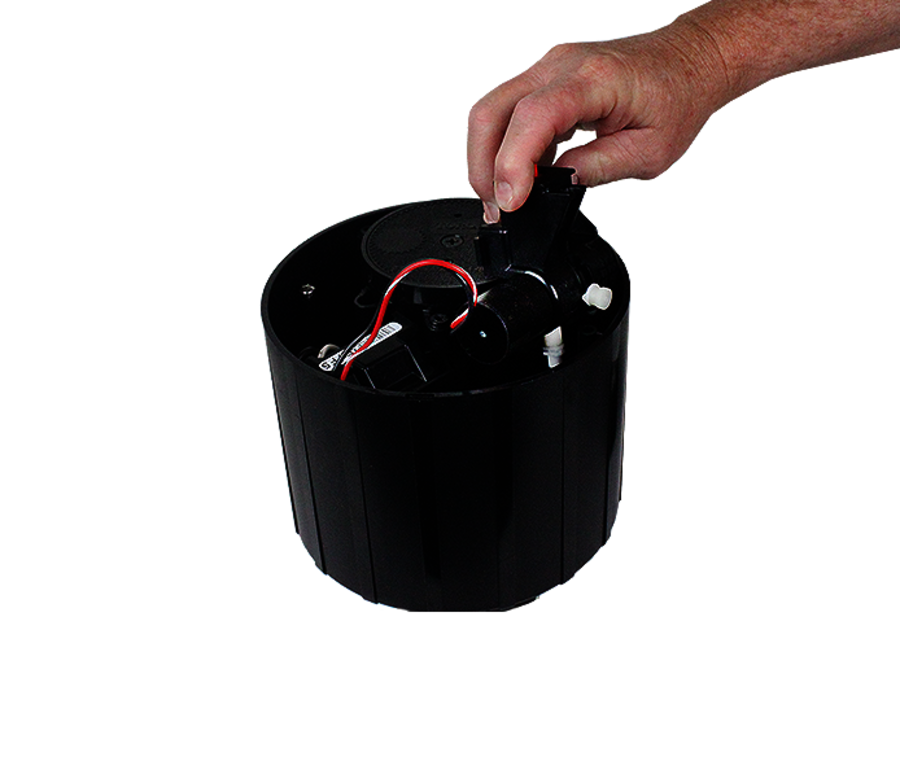

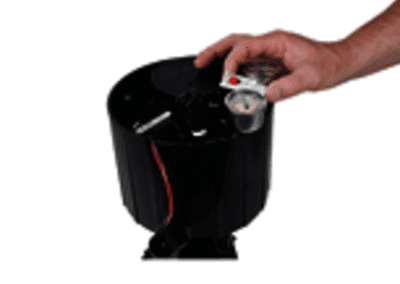

• The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

Specifications
Body Height: INF35-6: 10"
INF55-6: 11 3/8"""

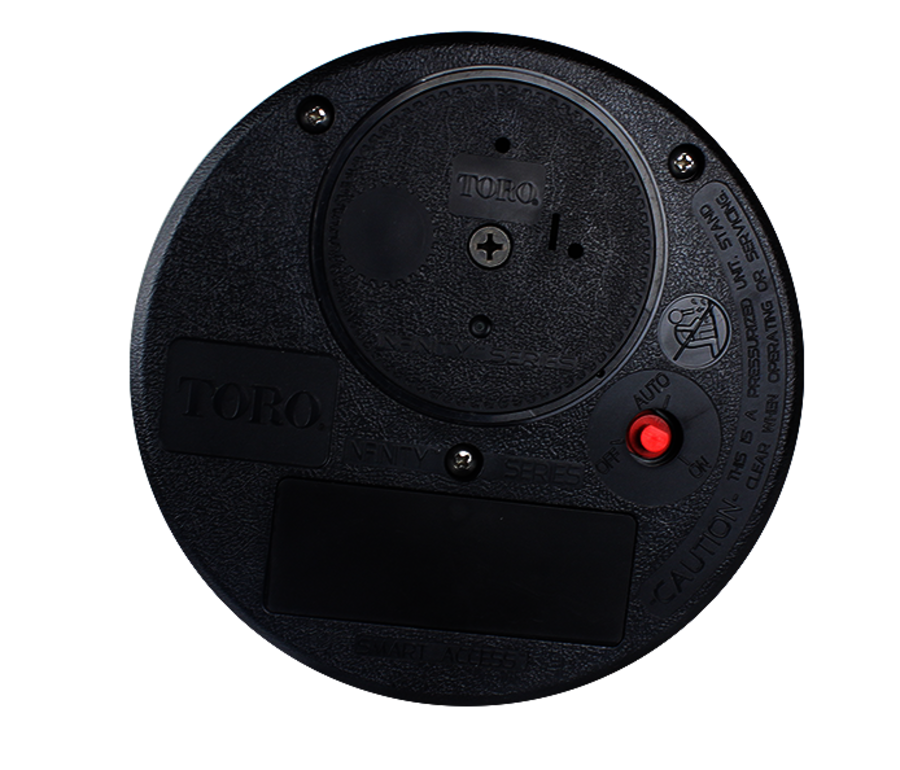

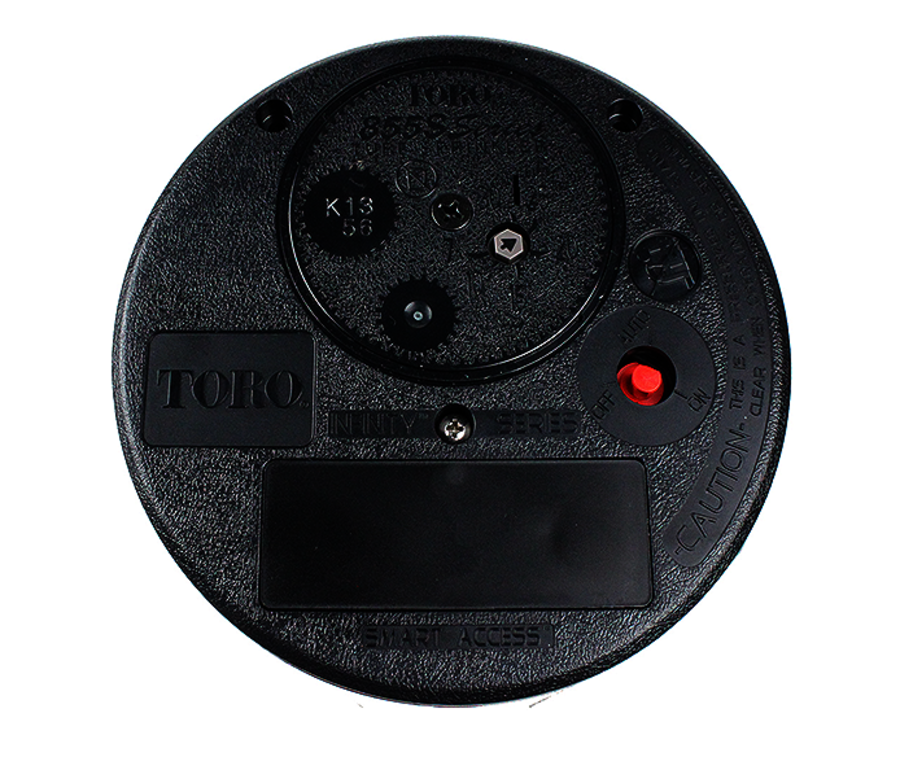

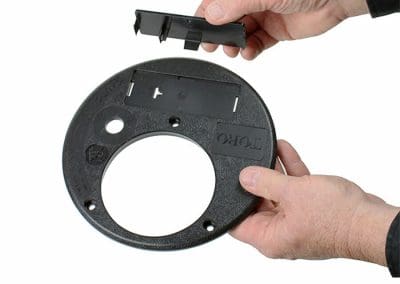

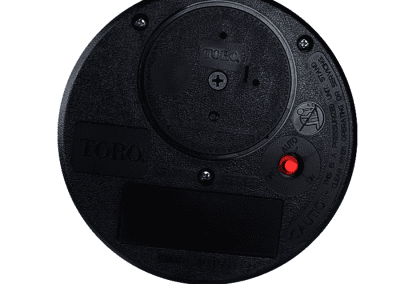

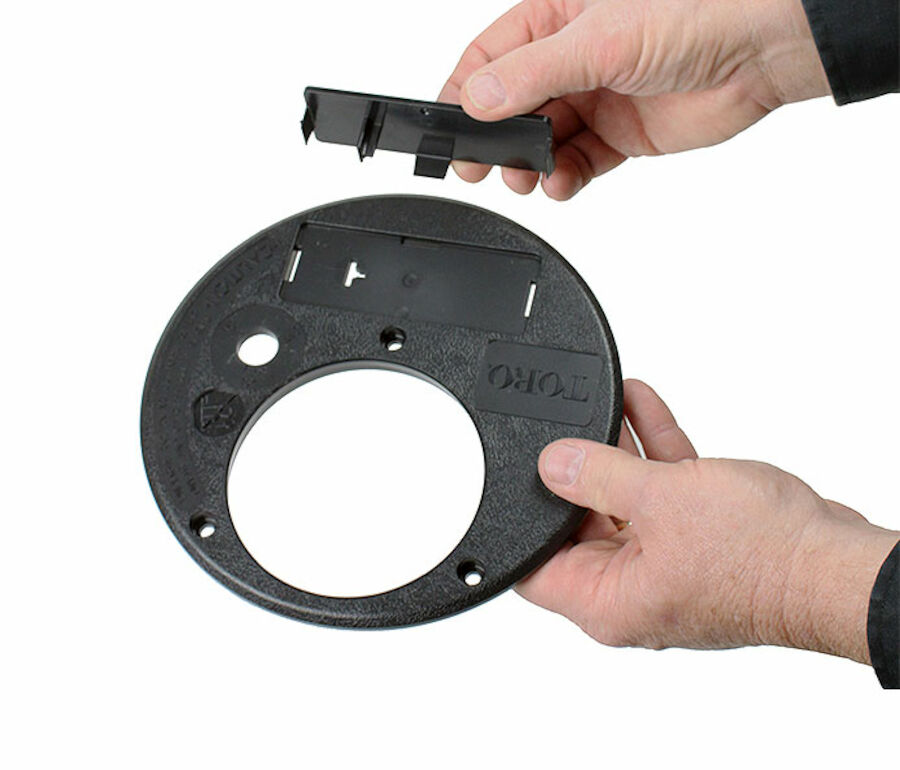

Cap Diameter: SMART ACCESS cover and compartment
INF35-6: 7 5/8
INF55-6: 7 5/8
Flow: INF35-6: 7.1 - 45.3 GPM
INF55-6: 13.9 - 61.1 GPM
Holding: 60 Hz, 0.10 Amps
Inlet: 1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Inrush: 60 Hz, 0.12 Amps
Minimum Operating Pressure: 40 PSI
Pop-up Height: INF55-6: 3 1/4", 5.13 lbs
Precipitation Rate: INF35-6: Min = .37""/hr; Max = .53""/hr
INF55-6: Min = .43""/hr; Max = .60""/hr
Radius: INF35-6: 42' - 92'
INF55-6: 52' - 100'
Recommended Operating Pressure: 40 PSI (2.8BAR)
Trajectory: 24 position from 7° - 30° in 1° increments
Weight: INF35-6: 4.31 lbs
INF55-6; 5.13 lbs
