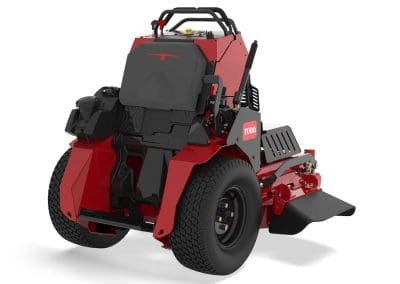

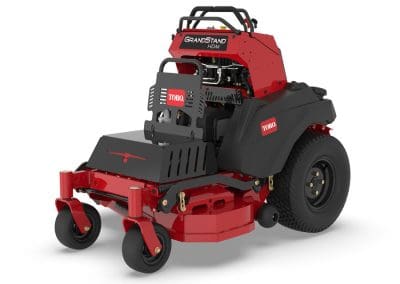

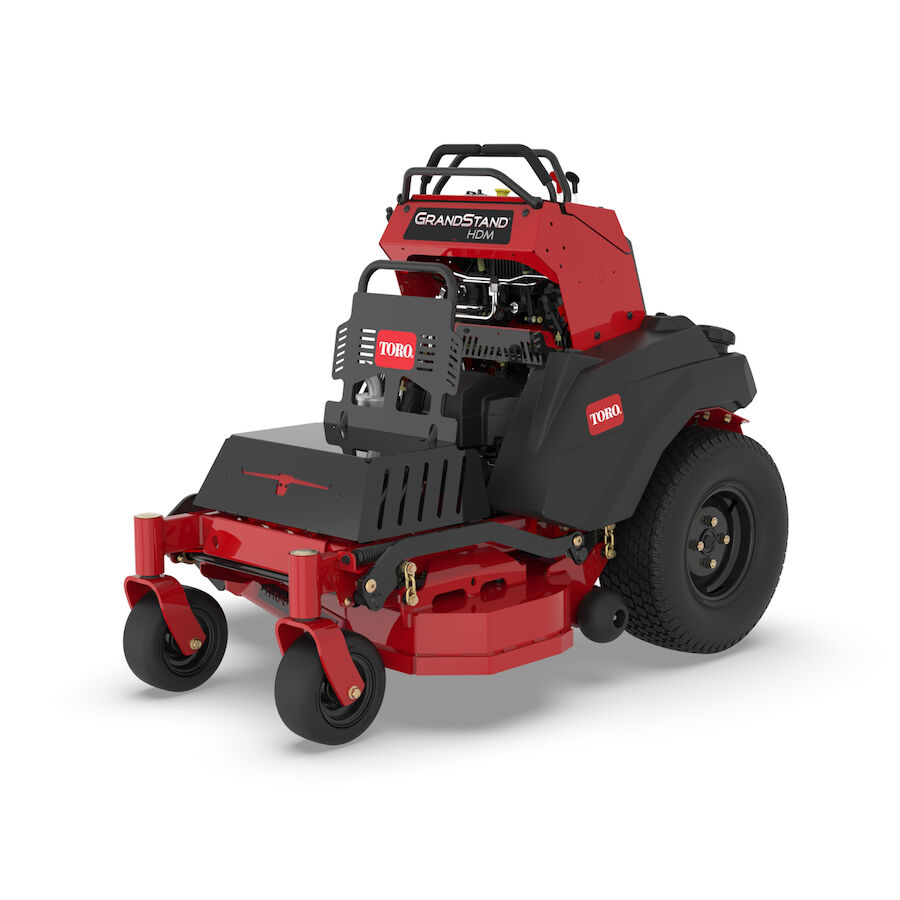

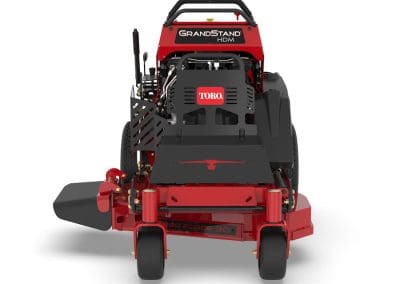

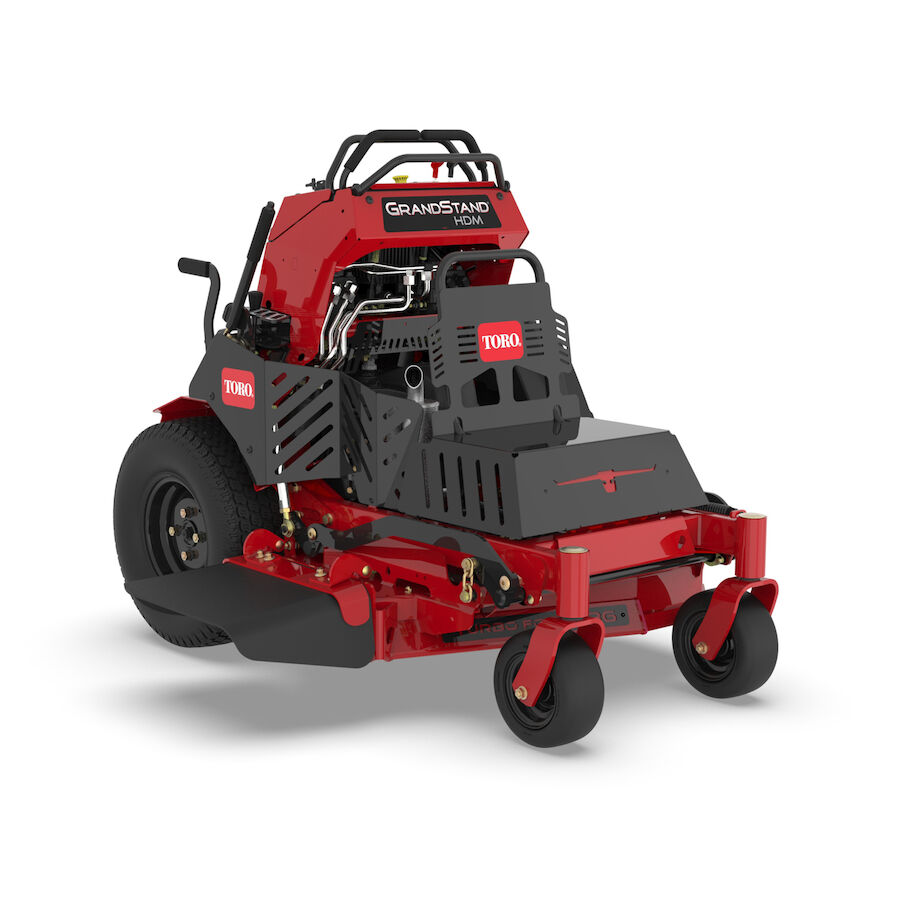

Toro GrandStand® HDM 36 in (91.4 cm) 18.5hp (603cc)

Toro GrandStand® HDM 36 in (91.4 cm) 18.5hp (603cc)

Stand up to long days and complex mowing jobs with the redesigned 36-inch GrandStand stand-on mower. Combining the speed and comfort of a zero-turn riding mower with the ease and maneuverability of a walk mower, you’ll knock out more jobs, faster, without the fatigue of a small walk-behind. From mowing to maintenance, this compact machine is built for easy, fast work.

Quick Quote

Name(Required)

More Info

• Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
• Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
• Get the job done 3x faster than a 21-inch walk behind mower.**
**Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
• Redesigned hood flips up for easy maintenance and cleaning.
• Trim close without damaging landscape structures or your chute.
• Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:
Air Filter: Dual Element with Reinforced Primary Filter
Blade Design: 0.204 in. / 0.518 cm Thick Heat-treated Steel
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Brake System: Lever Actuated Bar Brake (Park Brake)
CARB Compliant: Not CARB Compliant
Carrier Frame: Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel
Caster Tires: 9 in. x 4.5 in. - 5 in. (22.8 cm x 11.4 cm - 12.5 cm) Smooth Semi-Pneumatic
Clutch: Electromagnetic
Cooling System: Air Cooled
Deck Design: Fabricated Weldment
Deck Material: 7 Gauge High-Strength Steel
Deck Size: 36 in / 91 cm
Discharge Chute: Rubber
Drive System: Rear Wheel Drive
Drive Tires: 21 in. x 8.5 in. - 10 in. (53.3 cm x 21.6 cm x 25.4 cm) Turf Tires
Drive Type: Rear-Wheel Drive
Engine: 18.5 hp Kawasaki FS600V 603 cc
Engine Brand: Kawasaki
Engine Displacement (cc): 603 cc
Engine Horsepower: 18.5 hp
Forward Ground/Transport Speed: Up to 7.5 mph / 12.0 kph
Forward Mowing Speed: Up to 7.5 mph / 12.0 kph
Front Bumper: Bull-Nose
Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
Fuel Type: Gasoline
Greasable Bearings: Yes
Product Type: Stand-On Mowers
Product Use: Commercial
Start Type: Electric
Steering Controls: Twin Lever
