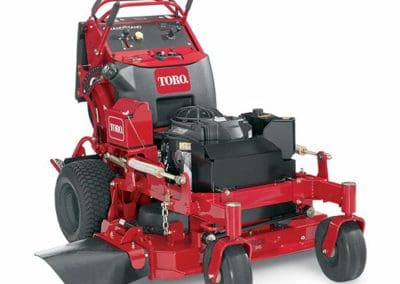

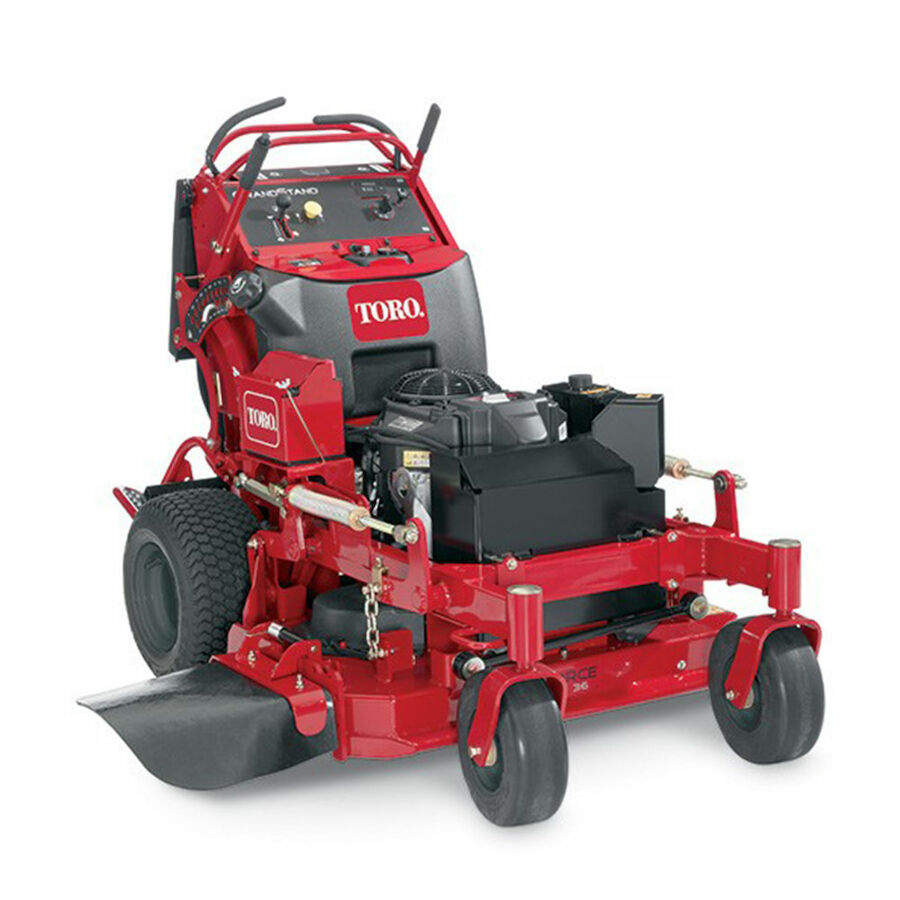

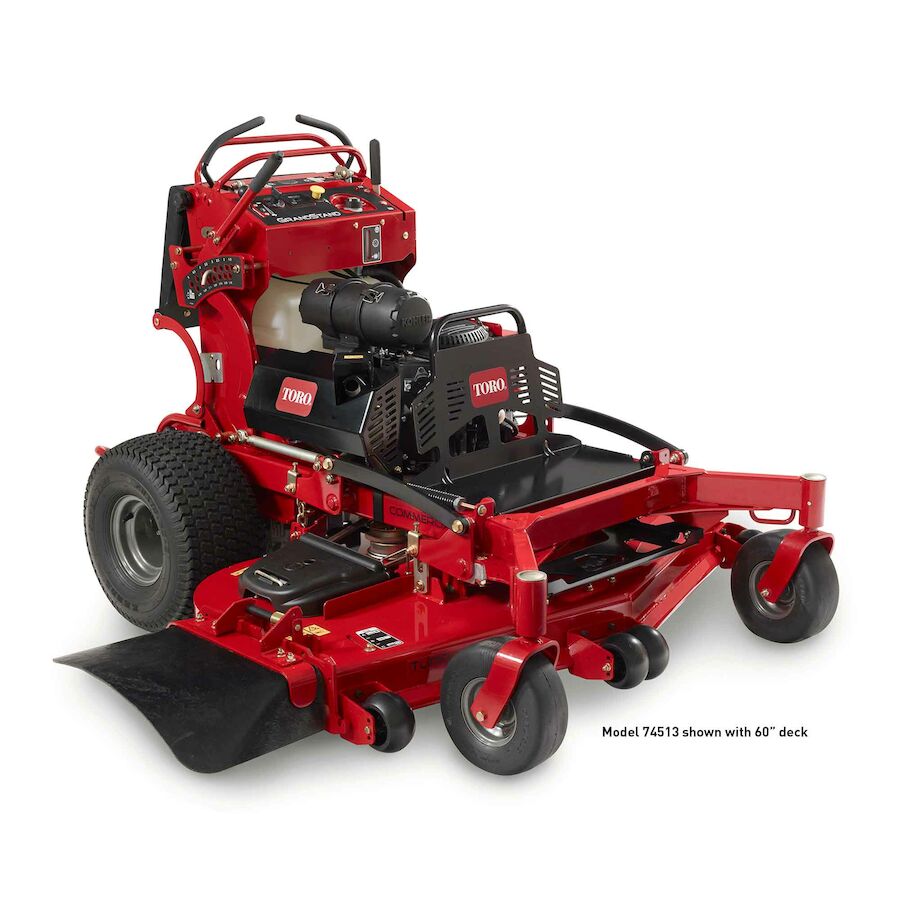

Toro GrandStand® 48 in. (122 cm) 22 hp 726 cc (California Model)
Toro GrandStand® 48 in. (122 cm) 22 hp 726 cc (California Model)
Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki FX 726cc engine.
Get Quick Quote
More Info
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• A wide stance and optimal balance enhance hillside stability and control.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications:
Adjustable Discharge Baffle: Standard
Air Filter: Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels: Optional
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Blades: 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions: 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
CARB Compliant: CARB Compliant
Carrier Frame: 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires: 11 in. x 5 in. - 5 in. (28 cm x 13cm - 13 cm) Flat-Free Semi-Pneumatic
Clutch: Electromagnetic
Comfort Platform: Foldable Operator Platform with Suspension
Controls: Twin lever
Deck Design: 80-grade 7-gauge 48" (122 cm) TURBO FORCE® w/bull-nose bumper
Deck Material: 7 Gauge Steel
Deck Size: 48 in / 122 cm
Discharge Chute: Rubber
Drive System: Unitized Pumps 10cc rev Wheel Motors 10 cir
Drive Tires: 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
Engine: 22 hp (16.4kW) Kawasaki FX691V 726 cc
Engine Brand: Kawasaki
Engine Displacement (cc): 726 cc
Engine Horsepower: 22.0 hp
Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
Front Bumper: Reinforced Bull-Nose
Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.
Fuel Type: Gasoline
Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
Hour Meter: Standard Hour Meter
Hydraulic Fluid: Premium synthetic
Product Type: Stand-On Mowers
Product Use: Commercial
Spindle Bearings: Maintenance-free
Spindle Housing: 9.375 in / 23.8 cm Diameter Cast Iron
Start Type: Electric
Steering Controls: Twin Lever
Additional information
| Fuel Type | |
|---|---|
| Deck Width | |
| Is CARB Compliant? | |
| Series: |
Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki FX 726cc engine.
