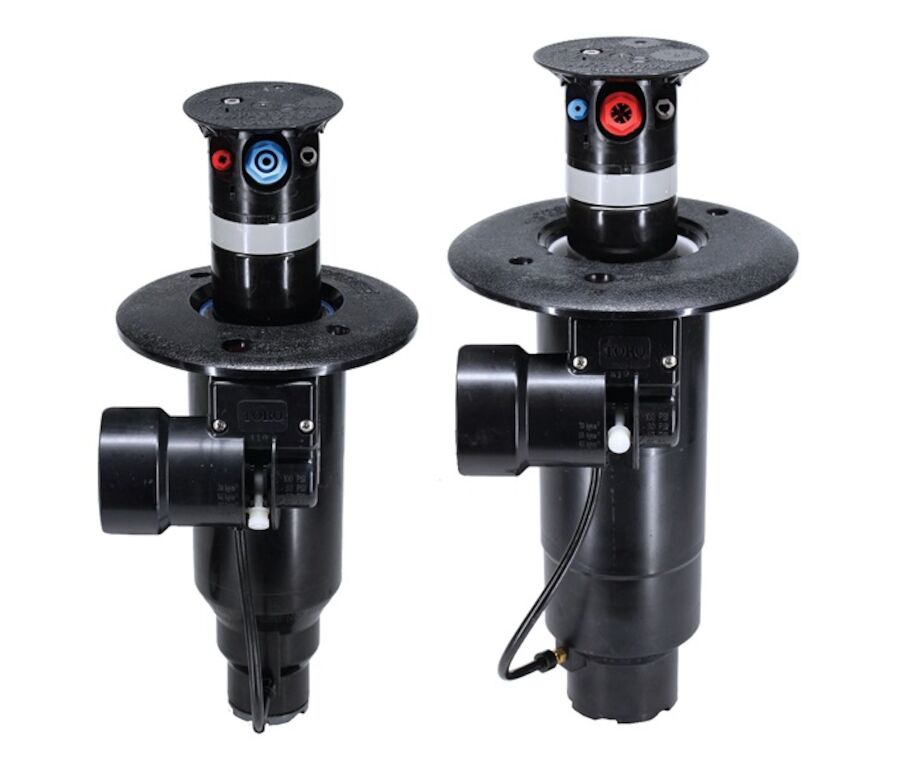

Toro FLEX800™ 35-6/55-6 Series Golf Rotors
Toro FLEX800™ 35-6/55-6 Series Golf Rotors
With the industry’s largest selection of high performance nozzles and TruJectory™ adjustment the New FLEX800™ 35-6/55-6 Series allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
Get Quick Quote
More Info
• Industry's Largest Nozzle Selection
• Indestructible Stainless Steel Valve Seat
Specifications
Body Diameter: FLX35-6: 6 1/2" (16.5); 855S: 7 1/2" (19.1 cm)
Body Height: FLX35-6: 10" (25.4 cm); 855S: 11 3/8" (28.9 cm)
Flow: 7.1-61.1 GPM (27 - 231 LPM)
Holding: 60 Hz, 0.10 Amps
Inlet: 1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Inrush: 60 Hz, 0.12 Amps
Minimum Operating Pressure: 40 PSI (2.8BAR)
Pop-up Height: 3 1/4" (8.3 cm)
Precipitation Rate: FLX35-6: Min = .37"/hr (.9 cm); Max = .53"/hr (1.3 cm) FLX55-6: Min = .43"/hr (1.1 cm); Max = .60"/hr (1.5 cm)
Radius: 42'-100' (12.8 - 30.5 m)
Recommended Operating Pressure: 65 - 100 PSI
Trajectory: 7-30 deg / 25 degrees & 15 degrees
Weight: FLX35-6: 2.98 lbs. (1.4 kg); 855S: 3.70 lbs. (1.7 kg)
With the industry’s largest selection of high performance nozzles and TruJectory™ adjustment the New FLEX800™ 35-6/55-6 Series allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
