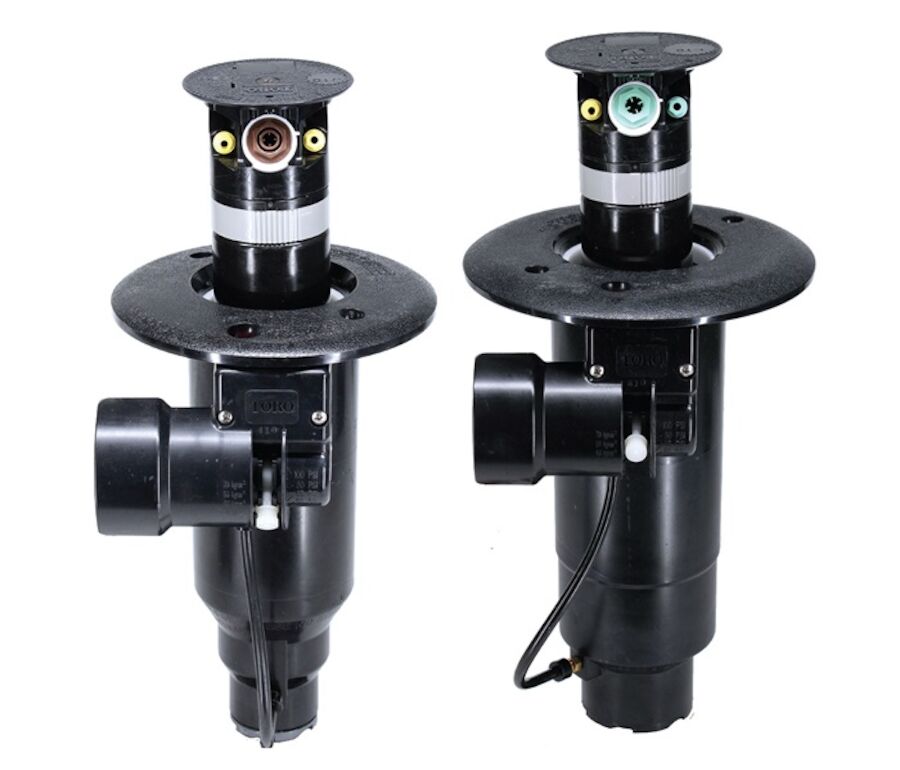

Toro FLEX800™ 35/55 Series Golf Rotors

Toro FLEX800™ 35/55 Series Golf Rotors

The New FLEX800™ 35/55 Series features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.

Quick Quote

Name(Required)

More Info

• Conversion Assemblies available to economically upgrade your existing Toro system
• True Part and Full-Circle in One – (40° - 330° part circle)
• Available in 1" (2.5 cm) inlet (DT35) and 1 1/2" (3.8 cm) inlet (DT55)

Specifications
Body Height: FLX35: 10" (25.4 cm); FLX55: 11 3/8" (29 cm)
Flow: 8.2-61.3 GPM (31 - 232 LPM)
Inlet: 1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Minimum Operating Pressure: 40 PSI (2.8BAR)
Pop-up Height: 3 1/4" (8.3 cm)
Precipitation Rate: FLX35: Min = .41"/hr (1 cm); Max = .45"/hr (1.1 cm) FLX55: Min = .46"/hr (1.2 cm); Max = .58"/hr (1.5 cm)
Radius: 43'-92' (13 - 28 m)
Recommended Operating Pressure: 65 - 100 PSI
Trajectory: 25 Degrees & 15 Degrees
Weight: FLX35: 2.98 lbs. (1.4 kg); FLX55: 3.70 lbs. (1.7 kg)

Additional information

Product Type

Series:

The New FLEX800™ 35/55 Series features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.
