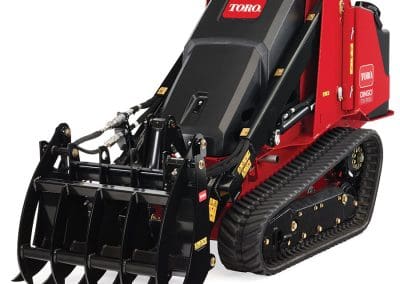

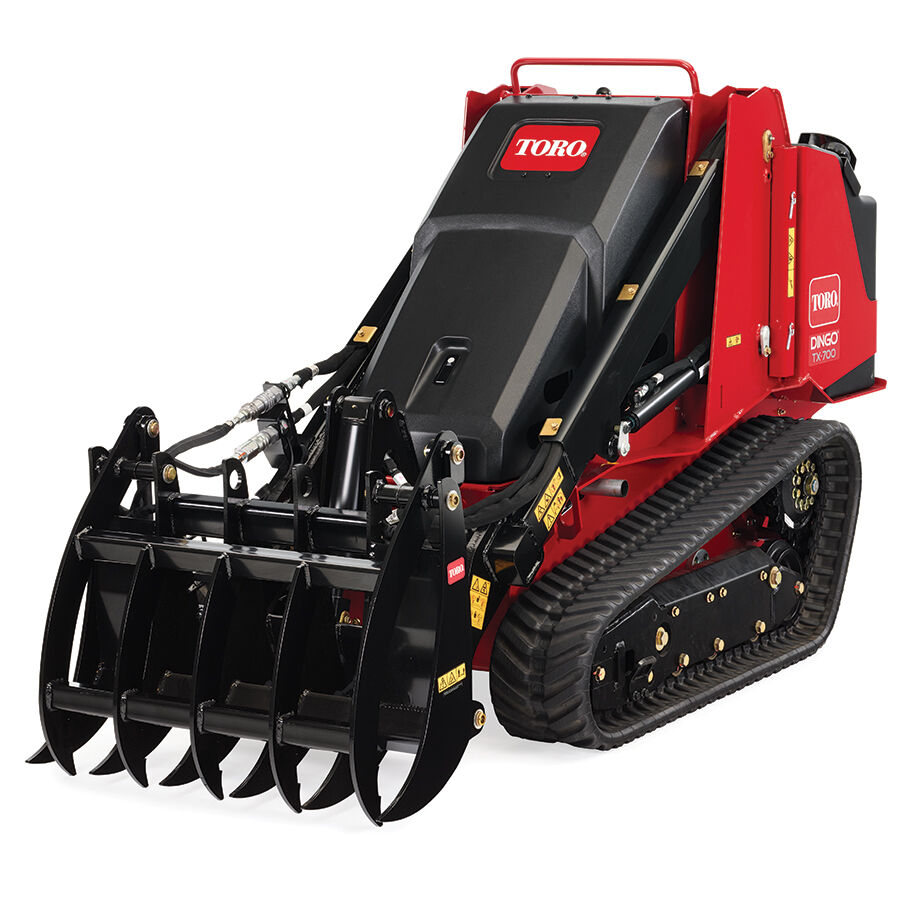

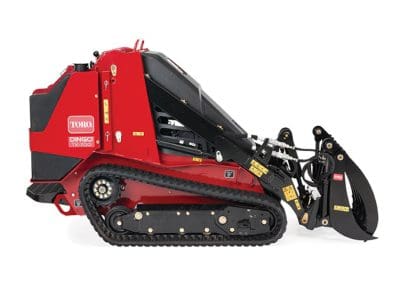

Toro Dingo® TX 700 Track Loader, Wide
Toro Dingo® TX 700 Track Loader, Wide
Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just Property Owner/Landscape Contractor projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where Property Owner/Landscape Contractors and contractors are working in confined spaces.
Get Quick Quote
More Info
• Compact footprint
• Patented traction control
• Camso track system with less aggressive tread pattern that minimizes turf damage
Specifications:
Air Filter: Dual Element
Cooling System: Combo Crossflow Radiator and Oil Cooler
Dump Angle: 42 degrees
Dump Height (cm): 134.4
Dump Height (inches): 52.9
Engine Make: Yanmar
Engine Model: 3TNV80F
Fuel Tank (gallons): 5.5
Fuel Tank (liters): 20.8
Fuel Type: Diesel
Ground Clearance (cm): 13.3
Ground Clearance (inches): 5.25
Ground Pressure: 8 psi
Ground Speed Forward (mph): 4
Ground Speed Foward (km/h): 6.4
Ground Speed Reverse (km/h): 6.4
Ground Speed Reverse (mph): 4
Hinge Pin Height (cm): 186.7
Hinge Pin Height (inches): 73.5
Hydraulic Flow: 14.5 gpm (each pump)
Hydraulic Flow Auxilary: 13.7 gpm
Hydraulic Pressure: 3,000 psi
Loader Arms: Radial
Manufacturer's Gross HP Rating (HP): 24.7
Manufacturer's Gross HP Rating (kW): 18
Max Operating Height (cm): 246.4
Max Operating Height (inches): 97
Oil Capacity (liters): 3.4
Oil Capacity (quarts): 3.6
Overall Height w/bucket (cm): 140.5
Overall Height w/bucket (inches): 55.3
Overall Height w/o bucket (cm): 140.5
Overall Height w/o bucket (inches): 55.3
Overall Length w/bucket (cm): 261.1
Overall Length w/bucket (inches): 102.8
Overall Length w/o bucket (cm): 208.3
Overall Length w/o bucket (inches): 82
Overall Width w/bucket (cm): 105.2
Overall Width w/bucket (inches): 41.4
Overall Width w/o bucket (cm): 102.1
Overall Width w/o bucket (inches): 40.2
Rated Operating Capacity* (kg): 321
Rated Operating Capacity* (lbs): 708
Reach – Fully Raised (cm): 78.7
Reach – Fully Raised (inches): 31
Reservoir Capacity (gallons): 10
Reservoir Capacity (liters): 37.9
RPM: 3000
Track Length (inches): 126.6
Track Length(cm): 321.5
Track Width (cm): 23.1
Track Width (inches): 9.1
Tracks: Camso Turf Friendly
Traction: Dual Hydrostatic Pump
Weight (kg): 1298
Weight (lbs): 2862
Wheelbase (inches): 39
Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just Property Owner/Landscape Contractor projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where Property Owner/Landscape Contractors and contractors are working in confined spaces.
