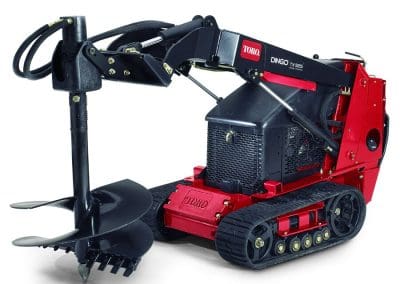

Toro Dingo® TX 525 Track Loader, Wide [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 525 Track Loader, Wide [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 525 Track Loader, Wide [Traction Unit Only - No Attachments Included]

Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.5 psi. And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.

Turf Star Western - Contact Form

Get Quick Quote

Thank you for your submission! We'll be in touch soon.
Please correct the errors below and try again.
Please enter your first name
Please enter your last name
Please enter a valid email address
Please enter your phone number
Please select an option
Please select a region
Please enter your ZIP code
You must agree to be contacted
Please complete the CAPTCHA

More Info

• Patented TX control system
• Liquid-Cooled Kubota diesel engine

Specifications:
Air Filter: Two-stage, heavy-duty, remote
Cooling System: Liquid Cooled
Displacement (cc): 901
Displacement (cu. in.): 55
Dump Angle: 38 degrees
Dump Height (cm): 117.1
Dump Height (inches): 46.1
Engine Make: Kubota
Engine Model: D902E3B
Fuel Tank (gallons): 6
Fuel Tank (liters): 23
Fuel Type: Diesel
Ground Clearance (cm): 11.6
Ground Clearance (inches): 4.6
Ground Pressure: 3.4 psi
Ground Speed Forward (mph): 4.5
Ground Speed Foward (km/h): 7.2
Ground Speed Reverse (km/h): 3.2
Ground Speed Reverse (mph): 2
Hinge Pin Height (cm): 167.1
Hinge Pin Height (inches): 65.8
Hydraulic Flow: 16.9 gpm (each pump)
Hydraulic Flow Auxilary: 13.8 gpm
Hydraulic Pressure: 3000 PSI
Loader Arms: Radial
Manufacturer's Gross HP Rating (HP): 24.8
Manufacturer's Gross HP Rating (kW): 18.5
Max Operating Height (cm): 228.8
Max Operating Height (inches): 90.1
Oil Capacity (liters): 3.63
Oil Capacity (quarts): 3.84
Overall Height w/bucket (cm): 117
Overall Height w/bucket (inches): 46.1
Overall Height w/o bucket (cm): 117
Overall Height w/o bucket (inches): 46.1
Overall Length w/bucket (cm): 233.6
Overall Length w/bucket (inches): 92
Overall Length w/o bucket (cm): 179.5
Overall Length w/o bucket (inches): 70.7
Overall Width w/bucket (cm): 104.1
Overall Width w/bucket (inches): 41
Overall Width w/o bucket (cm): 104.1
Overall Width w/o bucket (inches): 41
Rated Operating Capacity* (kg): 250
Rated Operating Capacity* (lbs): 553
Reach – Fully Raised (cm): 55.3
Reach – Fully Raised (inches): 21.8
Reservoir Capacity (gallons): 10
Reservoir Capacity (liters): 37.8
RPM: 3400
Track Length (inches): 96.6
Track Length(cm): 245.3
Track Width (cm): 24.1
Track Width (inches): 9.5
Tracks: Sprocket-drive, 10 road wheels per side
Traction: Dual Hydrostatic Pump
Weight (kg): 913
Weight (lbs): 2013
Wheelbase (inches): 31.2

Additional information

Fuel Type

Rated Operating Capacity* (lbs)

Wide or Narrow

Reach – Fully Raised (inches)

Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.5 psi. And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.
