Toro Dingo® TX 1300 Track Loader [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 1300 Track Loader [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 1300 Track Loader [Traction Unit Only - No Attachments Included]

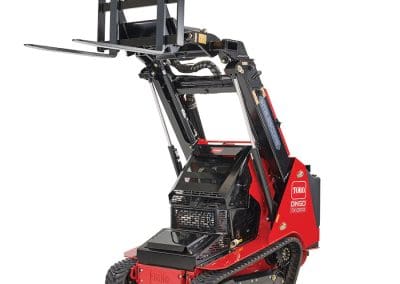

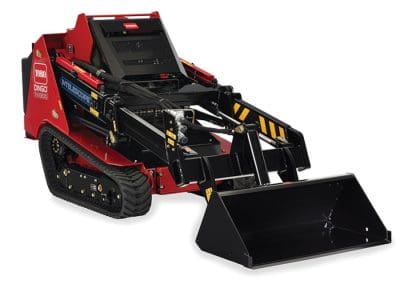

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26″ of reach, and the telescoped hinge-pin height of 109″ means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

Turf Star Western - Contact Form

Get Quick Quote

Thank you for your submission! We'll be in touch soon.
Please correct the errors below and try again.
Please enter your first name
Please enter your last name
Please enter a valid email address
Please enter your phone number
Please select an option
Please select a region
Please enter your ZIP code
You must agree to be contacted
Please complete the CAPTCHA

More Info

Specifications

• Intelescope Loader Arm
• Quick Coupler System

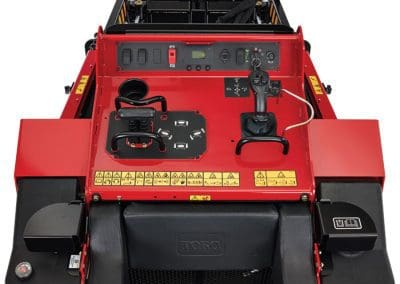

• Patented traction control

Specifications:
Air Filter: Remote dual element
Cooling System: Combo Downflow Radiator and Oil Cooler, Independent Fuel
Dump Angle: 38 degrees
Dump Height (cm): 230.3
Dump Height (inches): 90.7
Engine Make: Yanmar
Engine Model: 3TNV88C
Fuel Tank (gallons): 11
Fuel Tank (liters): 42
Fuel Type: Diesel
Ground Clearance (cm): 14.9
Ground Clearance (inches): 5.9
Ground Pressure: 5.5 psi
Ground Speed Forward (mph): 4.7
Ground Speed Foward (km/h): 7.6
Ground Speed Reverse (km/h): 7.6
Ground Speed Reverse (mph): 4.7
Hinge Pin Height (cm): 277.3
Hinge Pin Height (inches): 109.2
Hydraulic Flow: 13.4 gpm (each pump)
Hydraulic Flow Auxilary: 14.3 gpm
Hydraulic Pressure: 3,200 psi
Loader Arms: Radial
Manufacturer's Gross HP Rating (HP): 37
Manufacturer's Gross HP Rating (kW): 27
Max Operating Height (cm): 337.8
Max Operating Height (inches): 133
Oil Capacity (liters): 4.7
Oil Capacity (quarts): 5
Overall Height w/bucket (cm): 143.5
Overall Height w/bucket (inches): 56.5
Overall Height w/o bucket (cm): 143.5
Overall Height w/o bucket (inches): 56.5
Overall Length w/bucket (cm): 261.8
Overall Length w/bucket (inches): 103.1
Overall Length w/o bucket (cm): 215.6
Overall Length w/o bucket (inches): 84.9
Overall Width w/bucket (cm): 116.8
Overall Width w/bucket (inches): 46
Overall Width w/o bucket (cm): 116.8
Overall Width w/o bucket (inches): 46
Rated Operating Capacity* (kg): 280
Rated Operating Capacity* (lbs): 618
Reach – Fully Raised (cm): 67.8
Reach – Fully Raised (inches): 26.7
Reservoir Capacity (gallons): 9.2
Reservoir Capacity (liters): 34.8
RPM: 3000
Track Length (inches): 126.6
Track Length(cm): 321.5
Track Width (cm): 23.1
Track Width (inches): 9.1
Tracks: MERT track with "TF" style tread
Traction: Dual Hydrostatic Pump
Weight (kg): 1749
Weight (lbs): 3858
Wheelbase (inches): 39

Additional information

Fuel Type

Rated Operating Capacity* (lbs)

Reach – Fully Raised (inches)

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26″ of reach, and the telescoped hinge-pin height of 109″ means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.
