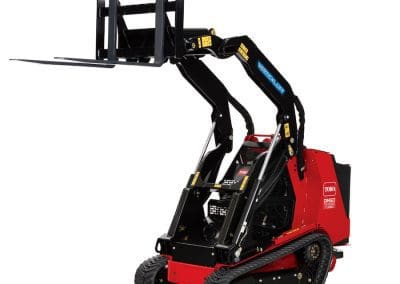

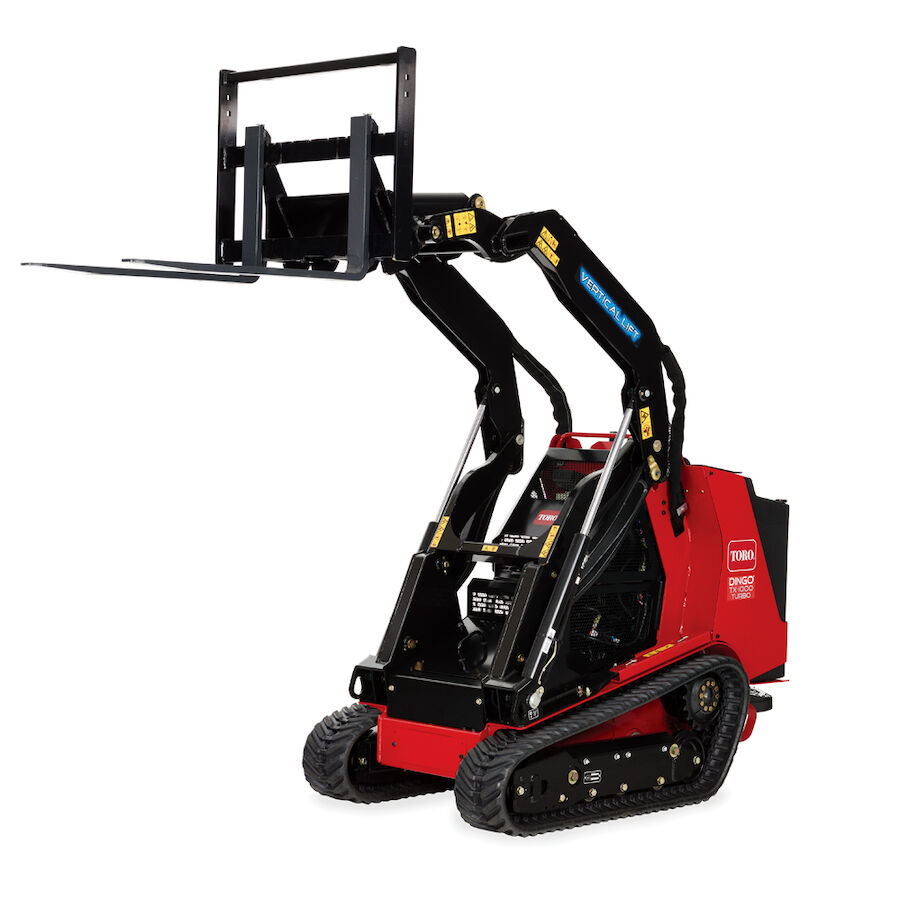

Toro Dingo® TX 1000 TURBO Track Loader, Wide [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 1000 TURBO Track Loader, Wide [Traction Unit Only – No Attachments Included]

Toro Dingo® TX 1000 TURBO Track Loader, Wide [Traction Unit Only - No Attachments Included]

Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.

Turf Star Western - Contact Form

Get Quick Quote

Thank you for your submission! We'll be in touch soon.
Please correct the errors below and try again.
Please enter your first name
Please enter your last name
Please enter a valid email address
Please enter your phone number
Please select an option
Please select a region
Please enter your ZIP code
You must agree to be contacted
Please complete the CAPTCHA

More Info

Specifcations

• Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
• Maximum height and reach easily clears the side of a 30-yard dumpster
• Patented traction control

Specifications:
Air Filter: Remote: Primary and Safety Elements
Cooling System: Combo Crossflow Radiator and Oil Cooler
Dump Angle: 40 degrees
Dump Height (cm): 153.2
Dump Height (inches): 60.3
Engine Make: Yanmar
Engine Model: 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank (gallons): 10.25
Fuel Tank (liters): 38.8
Fuel Type: Diesel
Ground Clearance (cm): 15
Ground Clearance (inches): 5.9
Ground Pressure: 4.1 psi
Ground Speed Forward (mph): 4.1
Ground Speed Foward (km/h): 6.6
Hinge Pin Height (cm): 205.7
Hinge Pin Height (inches): 81
Hydraulic Flow: 12.3 gpm (each pump)
Hydraulic Flow Auxilary: 13.2 gpm
Hydraulic Pressure: 3,000 psi
Hydraulic Reservoir Capacity (gallons): 8.6
Hydraulic Reservoir Capacity (liters): 32.5
Loader Arms: Vertical Lift
Manufacturer's Gross HP Rating (HP): 24.7
Manufacturer's Gross HP Rating (kW): 18.4
Max Operating Height (cm): 269.7
Max Operating Height (inches): 106.2
Oil Capacity (liters): 3.6
Oil Capacity (quarts): 3.8
Overall Height w/bucket (cm): 138.4
Overall Height w/bucket (inches): 54.5
Overall Height w/o bucket (cm): 138.4
Overall Height w/o bucket (inches): 54.5
Overall Length w/bucket (cm): 264.2
Overall Length w/bucket (inches): 104
Overall Length w/o bucket (cm): 210.8
Overall Length w/o bucket (inches): 83
Overall Width w/bucket (cm): 107.2
Overall Width w/bucket (inches): 42.2
Overall Width w/o bucket (cm): 101.3
Overall Width w/o bucket (inches): 39.9
Rated Operating Capacity* (kg): 453
Rated Operating Capacity* (lbs): 1000
Reach – Fully Raised (cm): 59.2
Reach – Fully Raised (inches): 23.3
Track Length (inches): 126.6
Track Length(cm): 321.6
Track Width (cm): 23.1
Track Width (inches): 9.1
Tracks: MERT Track With Turf Friendly Style Tread
Traction: Dual Hydrostatic Pump
Weight (kg): 1320
Weight (lbs): 2911
Wheelbase (inches): 39

Additional information

Fuel Type

Rated Operating Capacity* (lbs)

Wide or Narrow

Reach – Fully Raised (inches)

Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.
