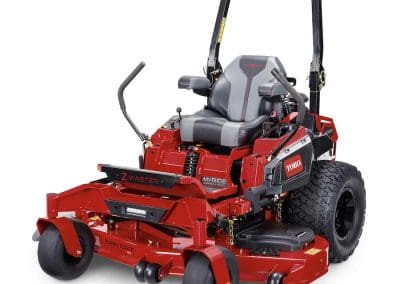

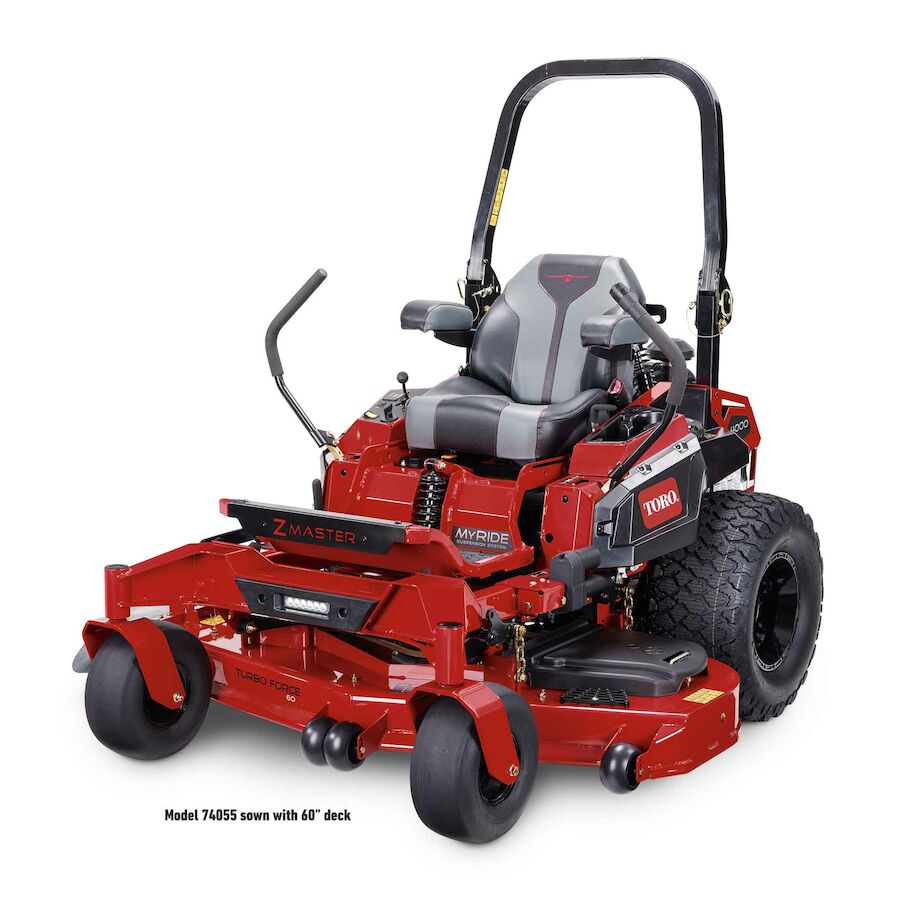

Toro 4000 Series MyRIDE® HDX 52 in. (132 cm) 31 hp 999cc

Toro 4000 Series MyRIDE® HDX 52 in. (132 cm) 31 hp 999cc

Kick productivity and comfort up a notch with the Z-Master 4000 HDX with MyRIDE® Suspension System. Power through your day with a powerful 31 hp* Kawasaki FX921V engine, heavy-duty commercial grade hydros, 26 in. Voodoo Trac™ Tires, and a 52 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Ride in comfort with the customizable MyRIDE Suspension System featuring up to 3 inches of platform travel to save your body from tough terrain. Plus, with the hour meter, USB ports, phone holder, and cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to make long days feel shorter.

Quick Quote

Name(Required)

More Info

• Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
• Survey the task from a higher-vantage-point with the 26" Voodoo Trac™ drive tires.
• Powerful illumination for after-hours work with LED headlights.
• Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
• Keep your phone and drink at arm's reach.
• Keep tabs on time and keep devices powered up with the hour meter and USB ports.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:
Adjustment: MyRIDE Suspension System Adjustability
Air Filter: Heavy-Duty Donaldson® Canister-Style Air Cleaner
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Blades: 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions: 91 in. x 70 in. x 52.5 in. / 231.1 cm x 316.2 cm x 133.4 cm
CARB Compliant: Not CARB Compliant
Caster Tires: 15 in. x 6.5 in. - 6 in. (38 x 16.5 - 15.2 cm) Pneumatic
Clutch: Electromagnetic
Comfort Platform: MyRIDE® Suspension System
Deck Design: 52" (132.1 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Material: 7 Gauge High-Strength Steel
Deck Size: 52 in / 132 cm
Discharge Chute: Rubber
Drive Tires: Voodoo Trac 26 in. x 10.5 in. - 12 in. (66 cm x 26.7 cm - 30.5 cm)
Engine: 31 hp* Kawasaki FX921V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine Brand: Kawasaki
Engine Displacement (cc): 999 cc
Engine Horsepower: 31.0 hp
Foot Operated Height of Cut: Standard
Forward Ground/Transport Speed: Up to 12.0 mph / 19.3 kph
Fuel Capacity: 10 gal. / 37.8 L / 40 Qt.
Fuel Type: Gasoline
Height of Cut: 1.5 - 5.5 in. / 3.8 - 14.0 cm
Hour Meter: Standard Hour Meter
Lighting: LED Headlights
Platform Travel: 3.0 in / 7.6 cm
Product Features: Electric Start, Foot Operated Height of Cut, Gas Powered, Hour Meter, MyRIDE Suspension System
Product Type: Zero Turn Mowers
Roll-Over Protection (ROPS): Folding; Standard
Seat: Deluxe Seat with Armrests
Shocks: 1 Front Center / 2 Rear
Spindle Bearings: Maintenance-free
Spindle Housing: 9 in / 2.9 cm Diameter Aluminum
Start Type: Electric
Steering Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission: ZT-4400 Integrated Pumps and Wheel Motors
