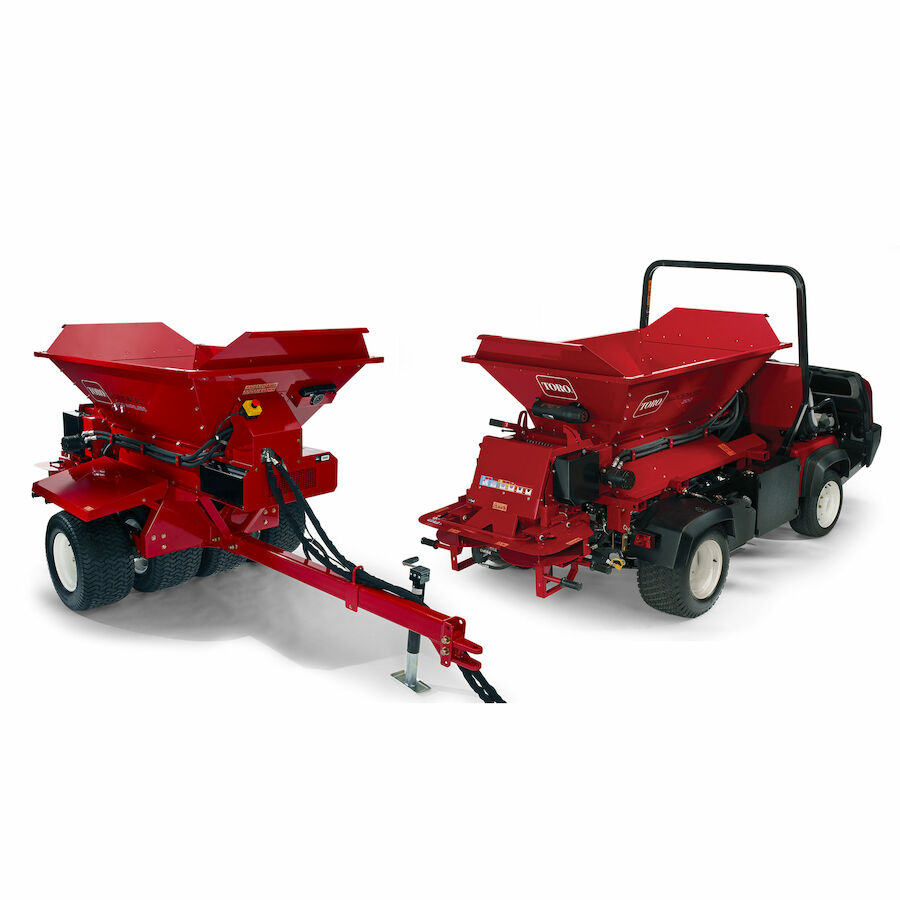

Toro 21 cu.ft. ProPass™ 200 Series Topdresser

Toro 21 cu.ft. ProPass™ 200 Series Topdresser

The Toro ProPass™ 200 broadcast style topdresser delivers extremely accurate spread patterns from ultra-light dustings to ultra-heavy aeration hole filling applications without any guesswork. A wireless controller provides the easiest method to set and control the spread functions. Available in both a utility vehicle mounted version and a towed version.

Series Models:
ProPass 200 – Bed Mounted or Tow Behind
ProPass 200 – Bed Mounted or Tow Behind with Wireless Controller

Quick Quote

Name(Required)

More Info

• Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
• The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
• Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
• Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.
• Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).
• The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
• A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
• Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
• Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Specification
Conveyor Belt: One-piece vulcanized, self-tracking (no seams or staples)
Height: 56" (1.4 m)
Hopper Capacity: 21 cu. ft. / 0.54 cu. m struck (25 cu. ft. / 0.71 cu. m heaped)
Hydraulic Connection: Minimum 6 US gal. / m. @ 2,000 psi (23 L/m @ 138 bar), maximum 10 US gal. / m. @ 2,800 psi (38 L/m @ 190 bar)
Length: Bed-mounted: 78" (1.98 m) Tow-behind: 134" (3.4 m)
Operating Width (Working Width): Variable, up to 30' (9.1 m)
Optional Accessories: Hydraulic Power Pack, Cross Conveyor / Swivel Kit
Payload (Tare): 2,000 lbs. (907 kg)
Recommended Tow Vehicle Requirement: Towing capacity: 3,400 lbs. (1542 kg) Tongue weight: 300 lbs. (136 kg)
Tires: 24" x 13" - 12", 4-ply
Weight: Bed-mounted: 636 lbs. (288.5 kg) in minimum configuration, 841 lbs. (381.5 kg) maximum Tow-behind: 1,026 lbs. (465.4 kg) in minimum configuration, 1,386 lbs. (628.7 kg) maximum (dry with optional hydraulic power pack)
Width: 65" (1.65 m)
Wireless Controller: Yes
