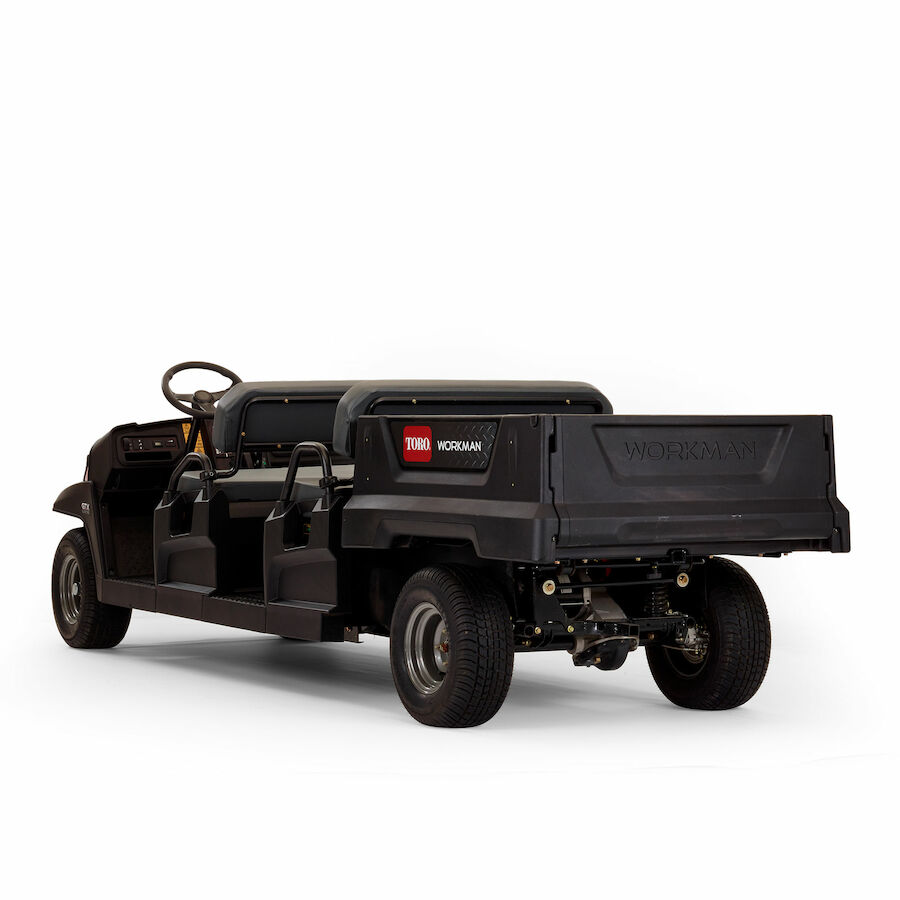

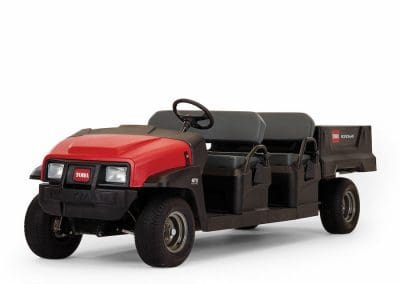

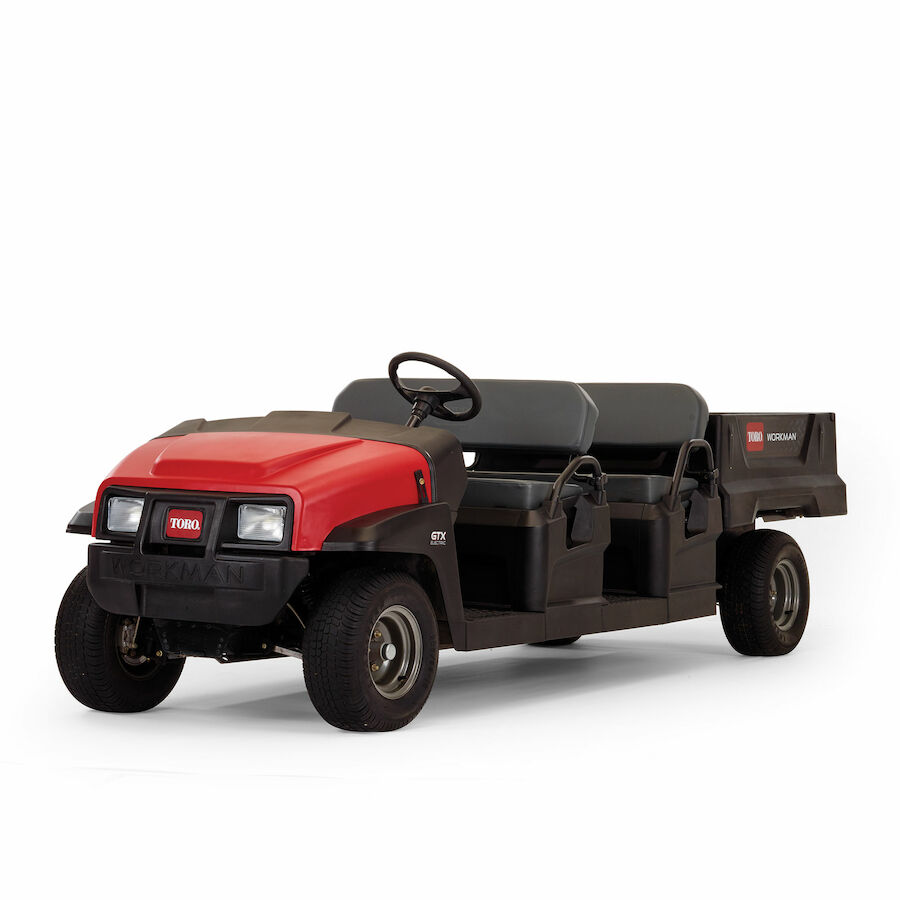

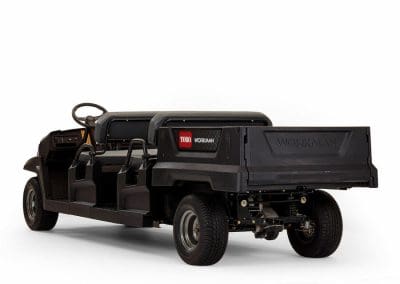

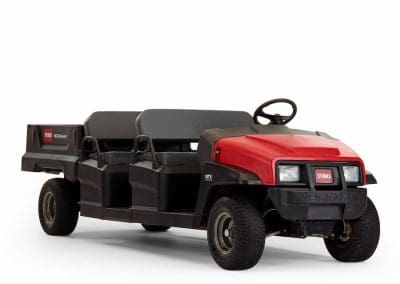

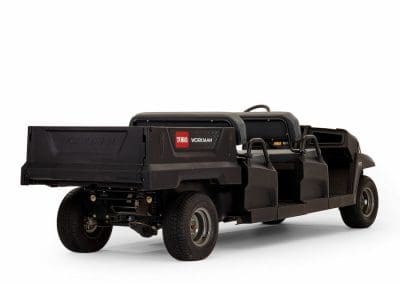

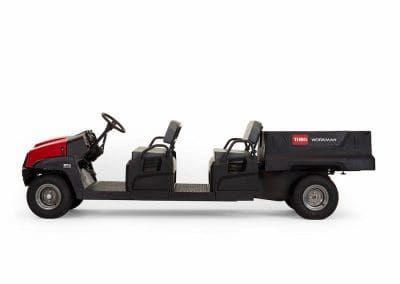

Toro Workman® GTX Extended Utility Vehicle

Toro Workman® GTX Extended Utility Vehicle

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.

Quick Quote

Name(Required)

More Info

• Additional 3" (7.6cm) of increased ground clearance, and stylish turf friendly tires with modern aluminum wheels.
• An improved power to weight ratio boosts payload capacity and productivity.
• Ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
• Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
• Maintenance free batteries, improved power-to-weight ratio, extended battery life, and largest cargo capacity in its class, the Lithium-Ion GTX is a machine that's always ready to get to work.
• Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity.
• Automotive-grade rack and pinion steering system provides more control and lowers steering effort.
• Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability.
• Standard USB port makes a dead battery on the job a thing of the past.
• Reliable and consistent stopping power

Specifications
Battery: Eight Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators.
Brakes - Front: Hydraulic Disc
Brakes - Rear: Hydraulic disc
Cargo Capacity: 800 lbs. (363 kg)
Charger: On-board high efficiency 1kW smart charger with 85-265VAC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port
Controller: 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes
Crated Model: No
Drivetrain: Battery
Electric Motor: Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source: Battery
Gauges/Instrumentation: Hour meter, battery level indicator, USB port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder, and three in-dash storage compartments.
Ground Clearance: Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height: 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn: Standard
Inside Turning Radius: 100" (254 cm)
Lights: Standard LED Headlights
Optional Accessories: Canopy, windshield, flat-bed, cargo box, storage box, trash can mount, bed racking, brush guard, brake/tail/signal lights, ROPS, cab
Outside Turning Radius: 31' (9.45 m)
Power Train (Engine Description): 48V brushless AC induction drive
Product Length: 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar: Standard
Roll-Over Protection (ROPS): Optional
Starting: Pedal Start
Steering System Description: Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" (35 cm) diameter.
Suspension - Front: Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear: Articulating swing arm, adjustable coil over shocks
Tires - Front: 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear: 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity: 1,200 lbs. (544 kg)
Towing Capacity: 680 lbs. (1500 kg)
Traction Drive (System): 2WD
Vehicle Configuration: Extended
Vehicle Type: Light Duty
Weight: 2-Seat with Bed: 1,395 lbs. (633 kg) 4-Seat with Bed: 1,670 lbs. (757 kg) 2-Seat with 6' Flat Bed: 1,784 lbs. (809 kg)
Wheelbase: 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)

Additional information

Fuel/Power Source

Vehicle Configuration

Traction Drive

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.
