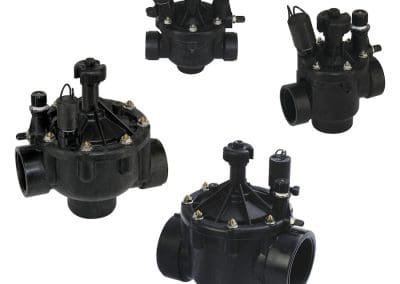

Toro P220GS Scrubber Series Valves
Toro P220GS Scrubber Series Valves
A true dirty water irrigation valve, able to handle chlorine and other chemicals found in reclaimed and other non-potable water systems. Constructed of heavy-duty, glass-filled nylon and EPDM rubber materials, these valves resist clogging and feature a patent-pending active scrubbing mechanism (ACT™ System) to actively fight sand, algae and other particles from blocking the proper metering through the valve.
Get Quick Quote
More Info
• Precise, pressure control option with compact EZReg™ (can be factory installed) dial design. Technology does not affect friction loss unlike competitive valves.
• Ensures the P-220 can operate at pressures up to 220 psi (15 Bar).
• Compact EZReg® dial-design technology (factory or field installed - no need to remove solenoid).
• Keeps valve box dry and easy to use.
• Simple verification of downstream pressure.
Specifications
Burst Pressure Safety Rating: 750 psi (51,7 bar)
Constuction: Glass Filled Nylon
Dimensions: 1" (25 mm): 6.75" H x 3.625" W (171mm x 92mm); 1.5" (40 mm): 7.25" H x 3.625" W (184mm x 92mm); 2" (50 mm): 9.5" H x 6.125" W (241mm x 156mm)
Flow: 1” (25mm): 5-40 gpm (19-151 lpm); 1.5" (40mm): 30-100 gpm (114-379 lpm); 2" (50mm): 80-180 gpm (303-681 lpm)
Holding: 60 Hz, 0.10 Amps
Minimum Pressure Diffrential: 10 psi (,7 bar)
Operating Pressure: 1” & 1.5” models (25mm & 40mm models) 10-220 psi (0,7-15,2 bar); 2” models (50mm models) 20-220 psi (1,4-15,2 bar) • Pressure Regulation: 5-100 psi (,34-6,89 bar)
Size: 1" (25mm), 1.5" (40mm), 2" (50mm)
Solenoid: Spike Guard™: 24 VAC (50/60 Hz) Standard; DC latching – momentary low voltage pulse
Additional information
| Series: |
|---|
A true dirty water irrigation valve, able to handle chlorine and other chemicals found in reclaimed and other non-potable water systems. Constructed of heavy-duty, glass-filled nylon and EPDM rubber materials, these valves resist clogging and feature a patent-pending active scrubbing mechanism (ACT™ System) to actively fight sand, algae and other particles from blocking the proper metering through the valve.
