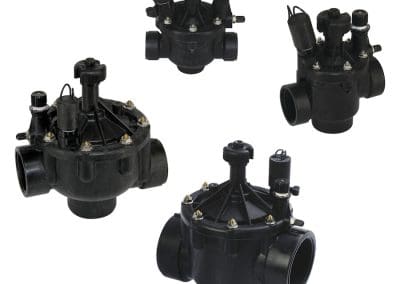

Toro P220 Series Valves

Toro P220 Series Valves

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi (15.2 BAR), but also have the ability to pressure regulate the flow through the valve anywhere from 5–100 psi (.3 – 6.9 BAR)

Quick Quote

Name(Required)

More Info

• With a lightning rating exceeding 20,000 volts, the new 220 Series brass valves offer nearly three times the lightning protection of competitive products
• Compact EZReg® dial-design technology (factory or field installed - no need to remove solenoid).
• With its 20,000 volt lightning rating, the industries highest, the Spike Guard™ solenoid has virtually eliminated the need for solenoid replacement in high lightning environments. And with 1/2 the amperage draw of traditional solenoids you can run twice as many sprinklers simultaneously, reduce the cost of wiring during initial installation or increase the distance from controller to sprinkler.
• Ensures the P-220 can operate at pressures up to 220 psi (15 Bar).
• Compact EZReg® dial-design technology (factory or field installed - no need to remove solenoid).
• Keeps valve box dry and easy to use.
• Simple verification of downstream pressure.

Specifications
Burst Pressure Safety Rating: 750 psi (51,7 bar)
Constuction: Glass Filled Nylon
Dimensions: 1" (25 mm): 6.75" H x 3.625" W (171mm x 92mm); 1.5" (40 mm): 7.25" H x 3.625" W (184mm x 92mm); 2" (50 mm): 9.5" H x 6.125" W (241mm x 156mm)
Flow: 1” (25mm): 5-40 gpm (19-151 lpm); 1.5" (40mm): 30-100 gpm (114-379 lpm); 2" (50mm): 80-180 gpm (303-681 lpm)
Holding: 60 Hz, 0.10 Amps
Minimum Pressure Diffrential: 10 psi (,7 bar)
Operating Pressure: 1” & 1.5” models (25mm & 40mm models) 10-220 psi (0,7-15,2 bar); 2” models (50mm models) 20-220 psi (1,4-15,2 bar) • Pressure Regulation: 5-100 psi (,34-6,89 bar)
Size: 1" (25mm), 1.5" (40mm), 2" (50mm)
Solenoid: Spike Guard™: 24 VAC (50/60 Hz) Standard; DC latching – momentary low voltage pulse

Additional information

Series:

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi (15.2 BAR), but also have the ability to pressure regulate the flow through the valve anywhere from 5–100 psi (.3 – 6.9 BAR)
