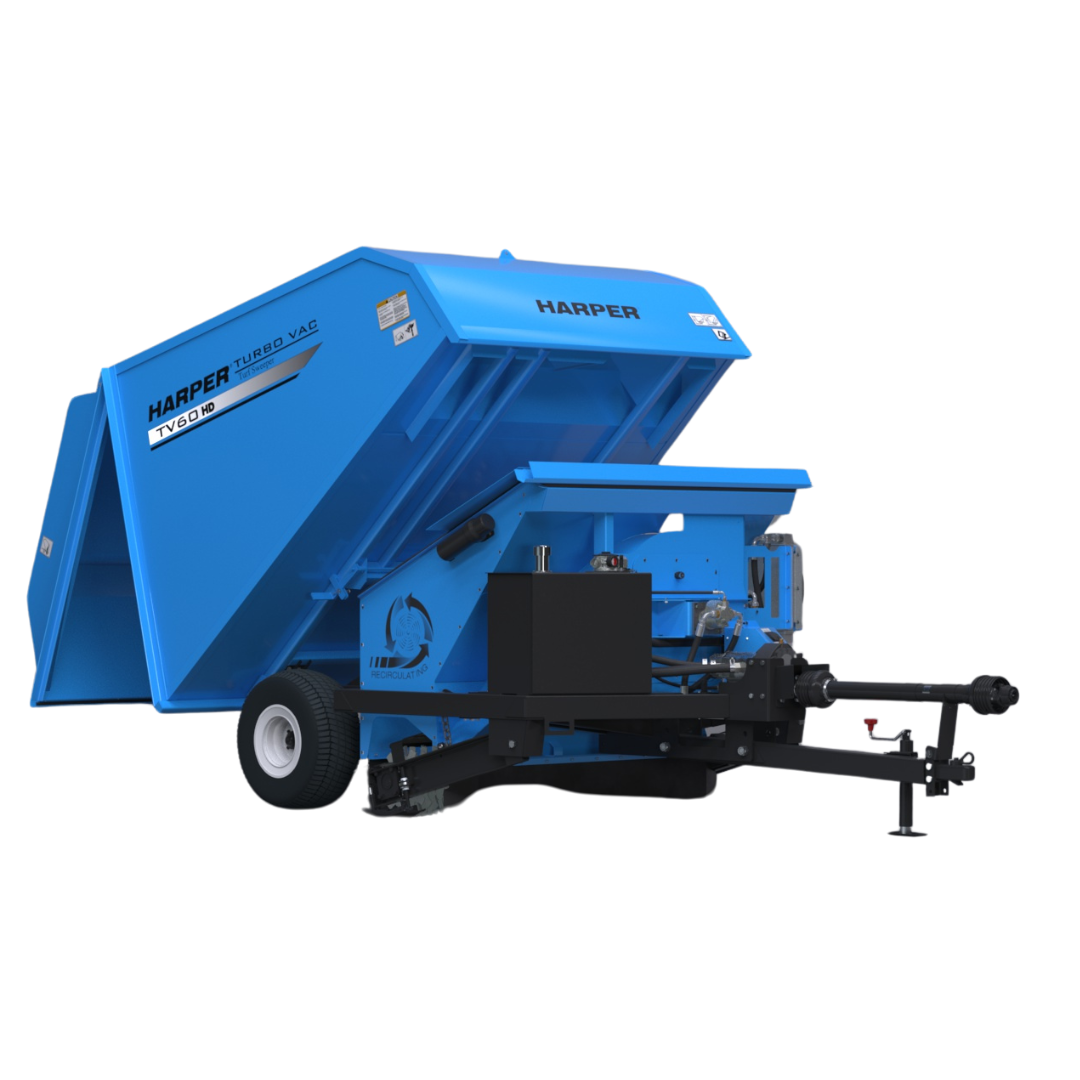

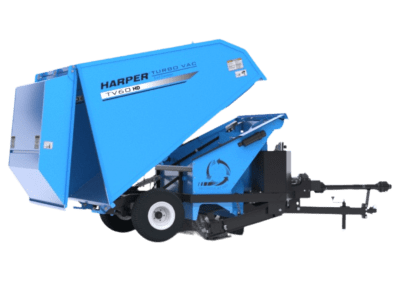

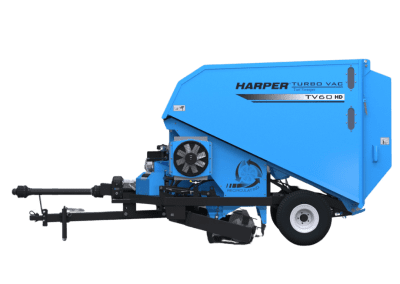

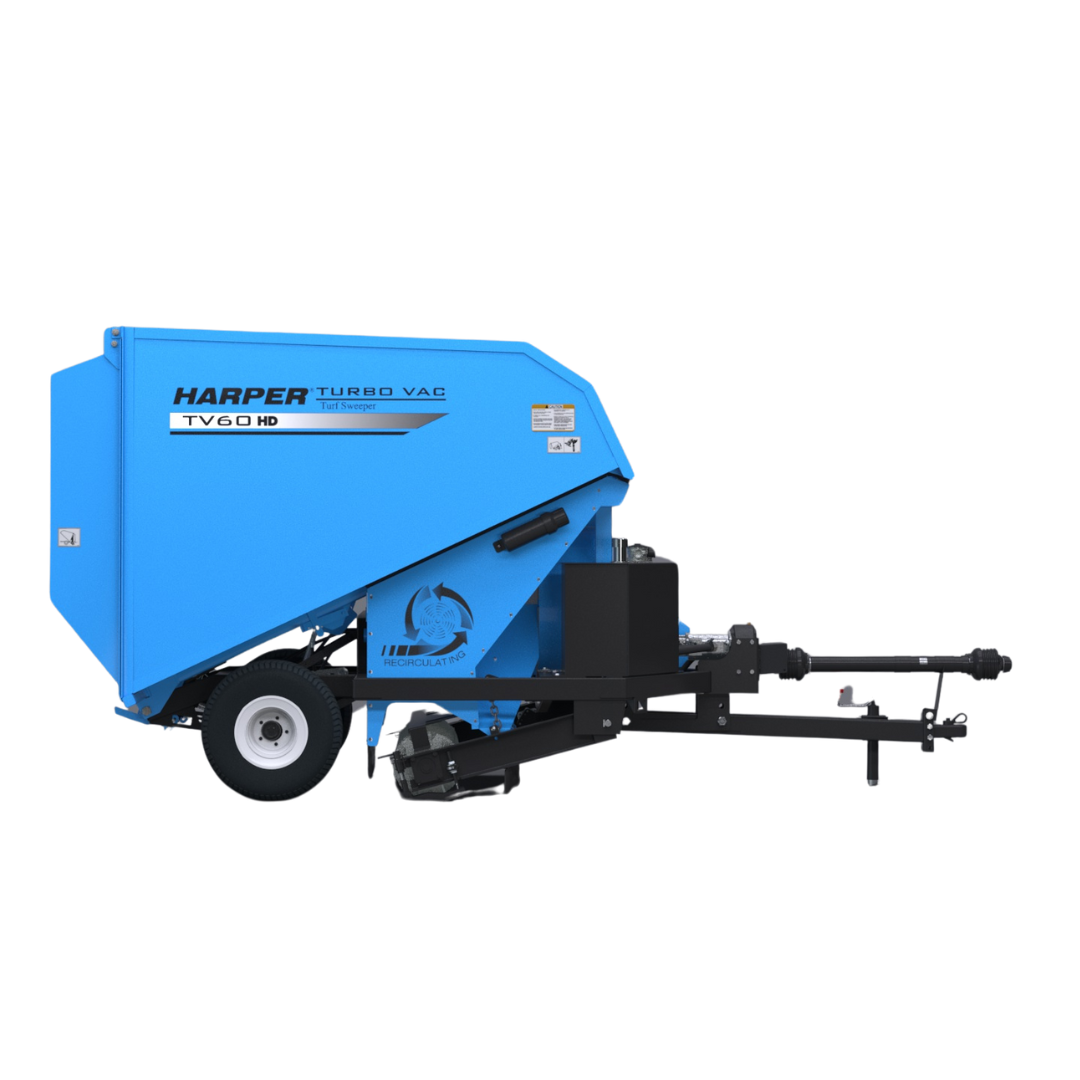

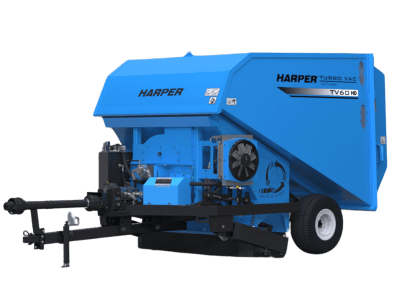

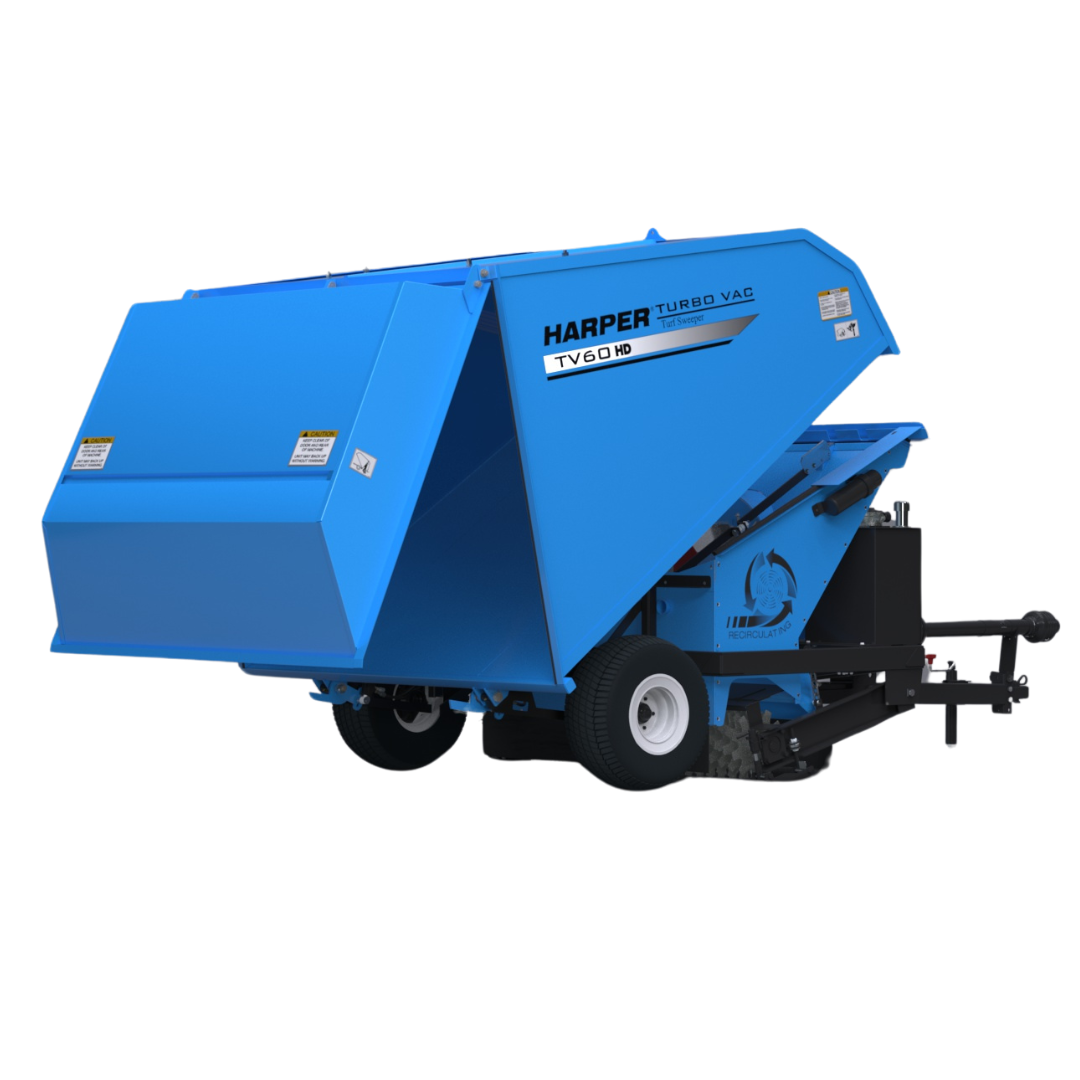

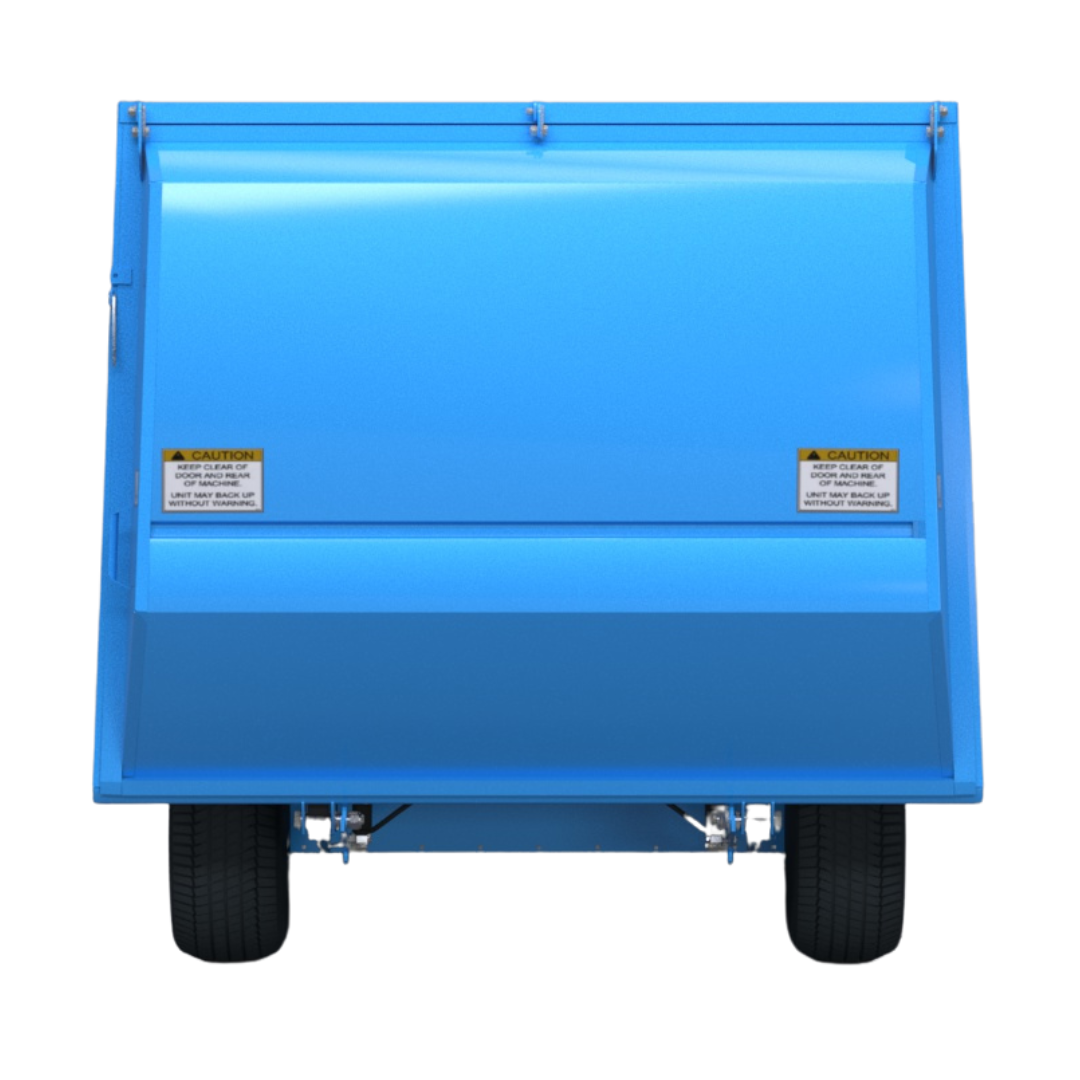

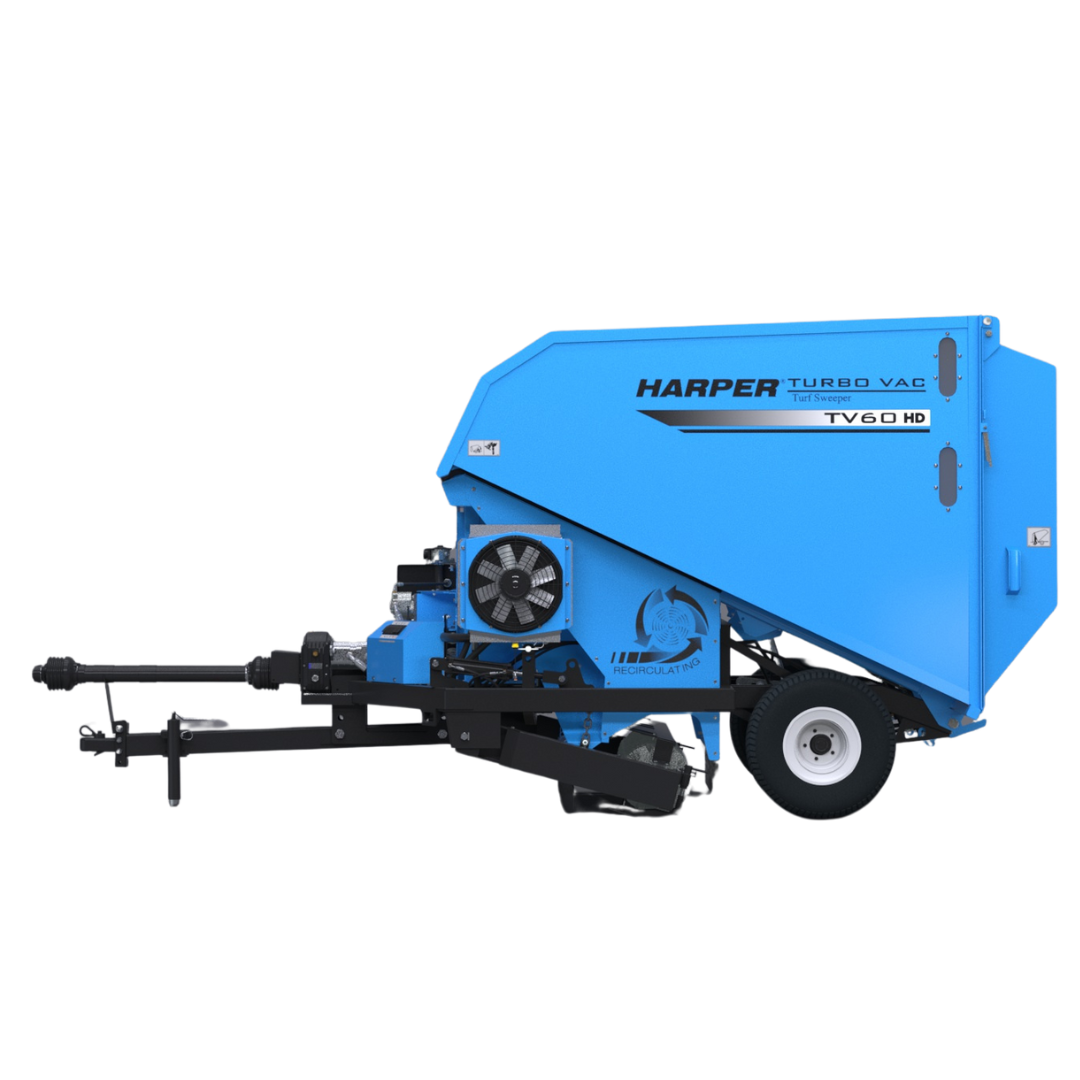

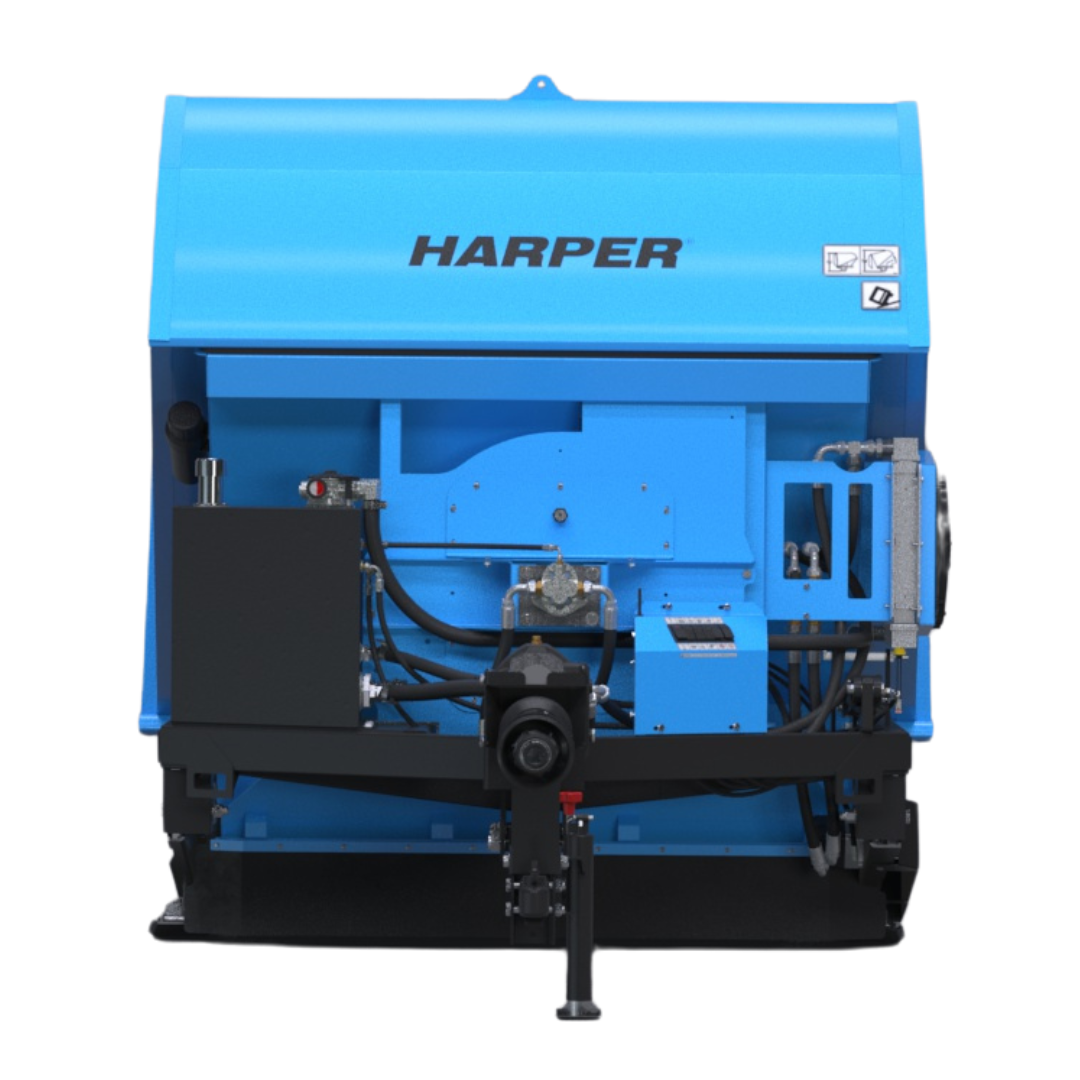

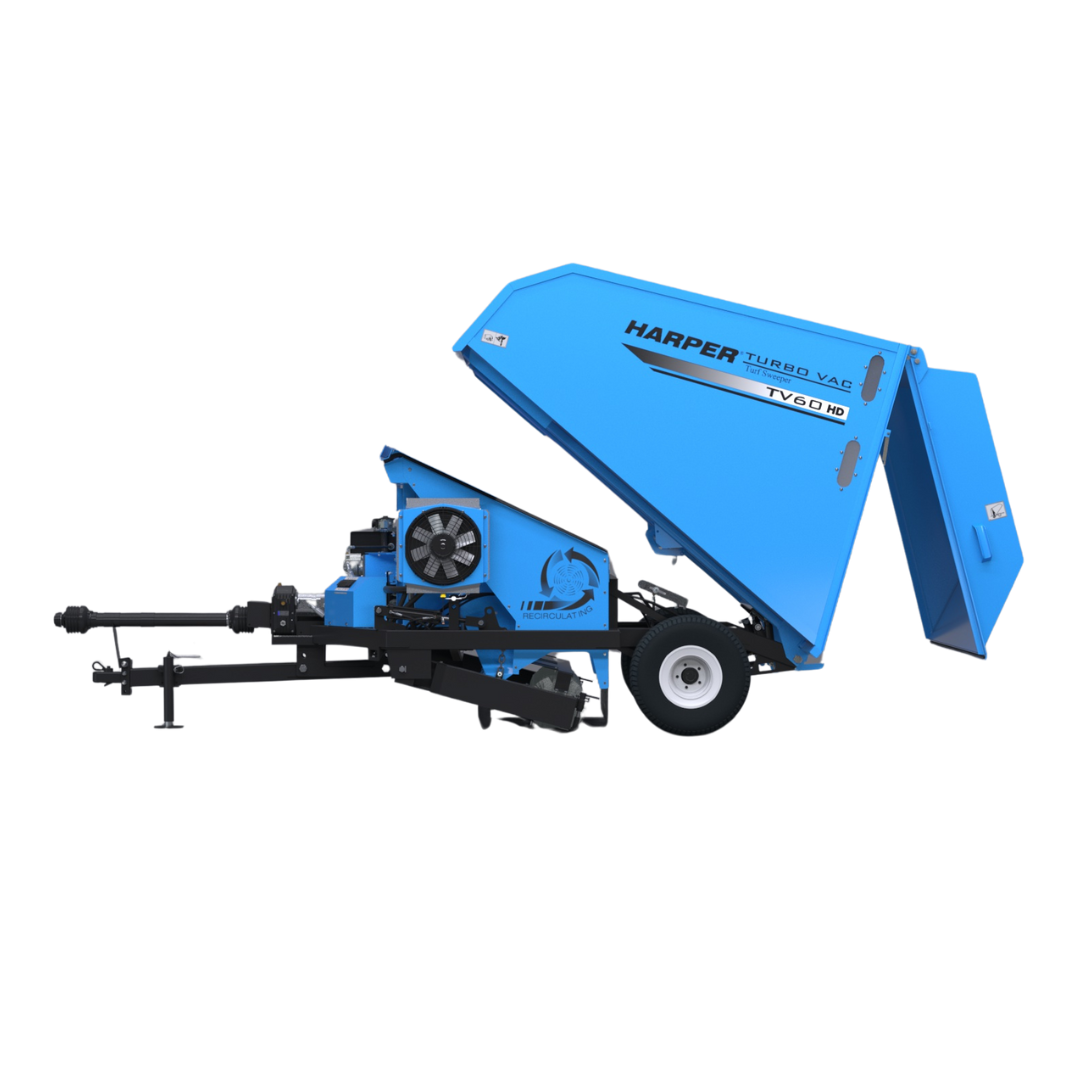

Harper TV60RHD

Harper TV60RHD

Maneuverable and versatile, the TV60 RHD is the ideal tool for verti-cutting and vacuuming in one pass. Thoroughly removes litter, grass and leaves from sports fields, parks and recreational grounds with the adaptable 60 inch swath. The Recirculating Air System additionally runs cleaner and quieter than competitors in the market. Never leave the driver’s seat with the wireless remote at your fingertips. Complete the package with optional brush and hose kits.

Quick Quote

Name(Required)

More Info

Specifications:
Safety Features: Safety latches on all cylinders for service functions, minimal dust generated and quiet operation.
Blower Drive: Hydraulic motor powered by gear dump
Blower Fan: 25" diameter abrasion resistant steel with replaceable machined UHMW, poly liner and 1.5" shaft w/self-aligned bearings supporting both ends
Blower Discharge: Easy access to blower for liner inspection and replacement
Engine: None (PTO powered) 40 HP Required
Hydraulics: Tractor PTO driven
Hydraulic Oil: Crown AW46; ISO 46 Hydraulic Oil
Main Frame: 11 gauge welded and reinforced steel tubing
Bearings: Greasable bearings and sealed bearings
Hopper Capacity: 7 cubic yards
Wheels / Tires: 6-bolt wheels and (2) 26x12 turf tires
Controls: Wireless remote control from operator seat
Rotors: 12" dia. x 60" with adjustable gauge wheels
Discharge: Hydraulic dump with hydraulic power latches
Tongue and Hitch: Adjustable height tongue with ball hitch
Paint: Durable 2-part polyurethane
Dimensions: 164" L x 85" W x 85" H
Weight: 2,250 lbs. (1,021 kg)
Options: Brush rotor, rubber finger rotor, verti-cut with rubber finger rotor, verti-cut with carbide tip blades

Additional information

Weight2250 lbs
Dimensions164 × 85 × 85 in

Maneuverable and versatile, the TV60 RHD is the ideal tool for verti-cutting and vacuuming in one pass. Thoroughly removes litter, grass and leaves from sports fields, parks and recreational grounds with the adaptable 60 inch swath. The Recirculating Air System additionally runs cleaner and quieter than competitors in the market. Never leave the driver’s seat with the wireless remote at your fingertips. Complete the package with optional brush and hose kits.
