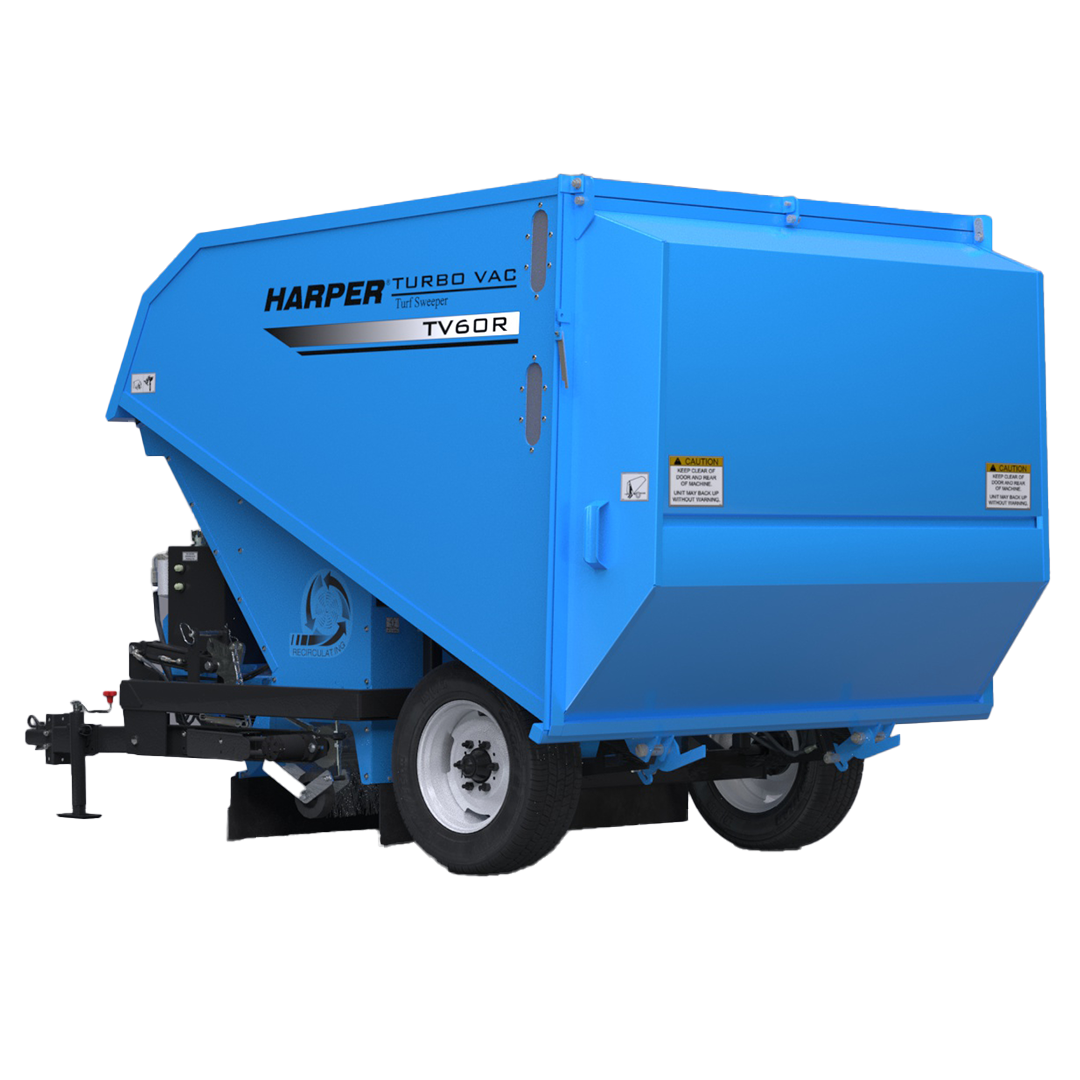

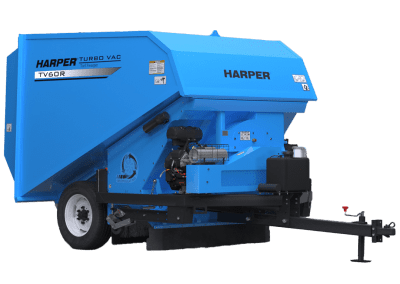

Harper TV60RE

Harper TV60RE

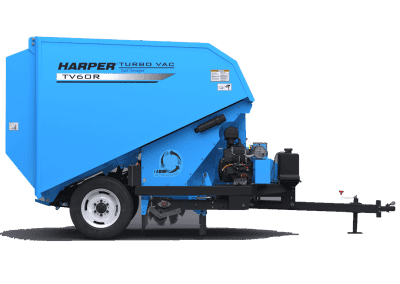

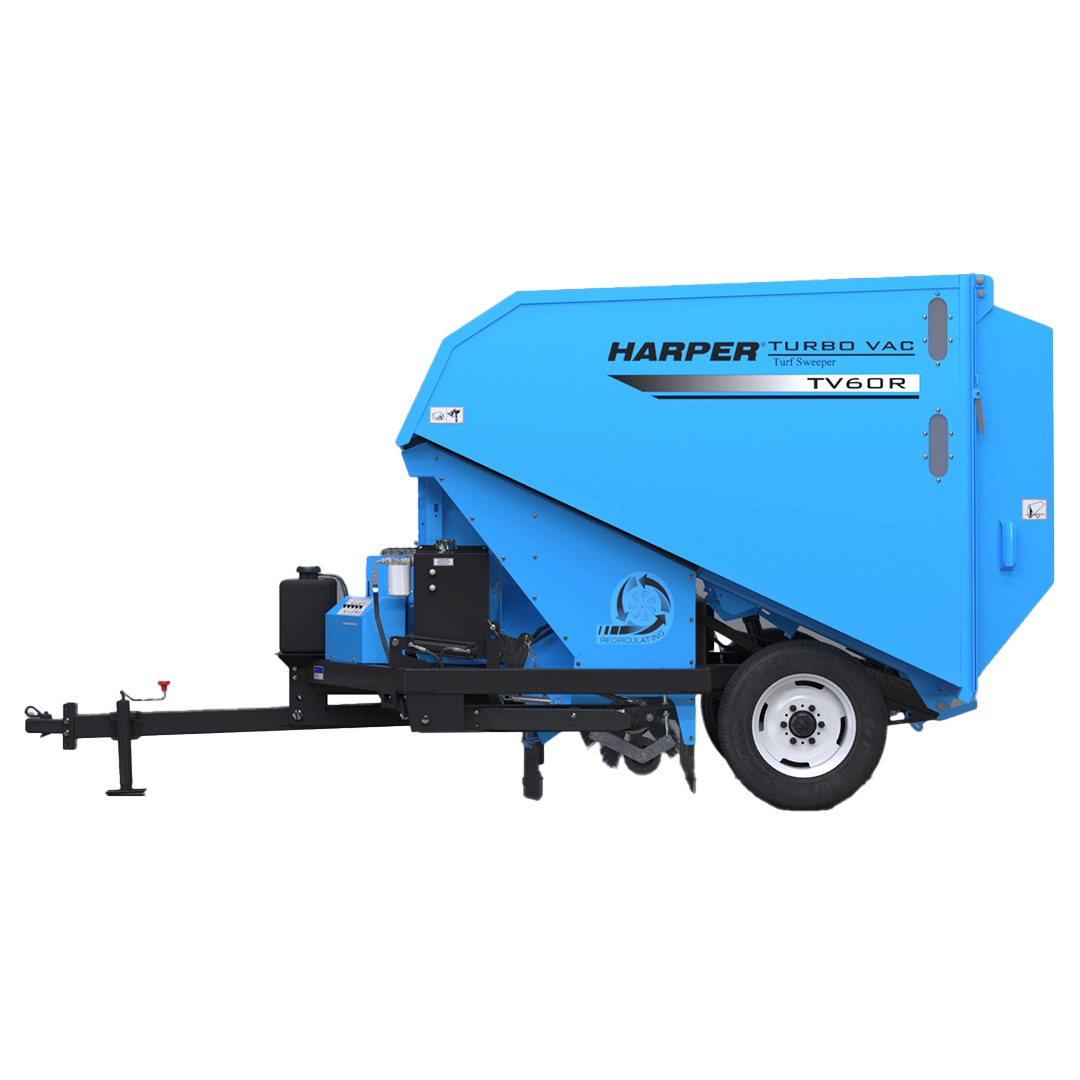

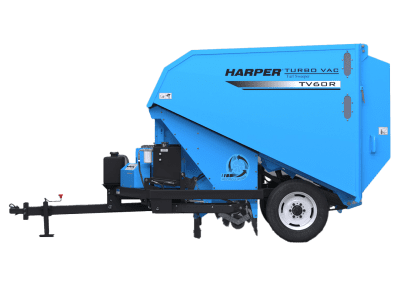

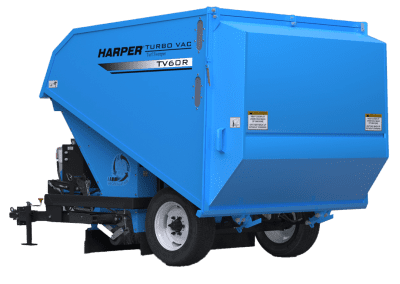

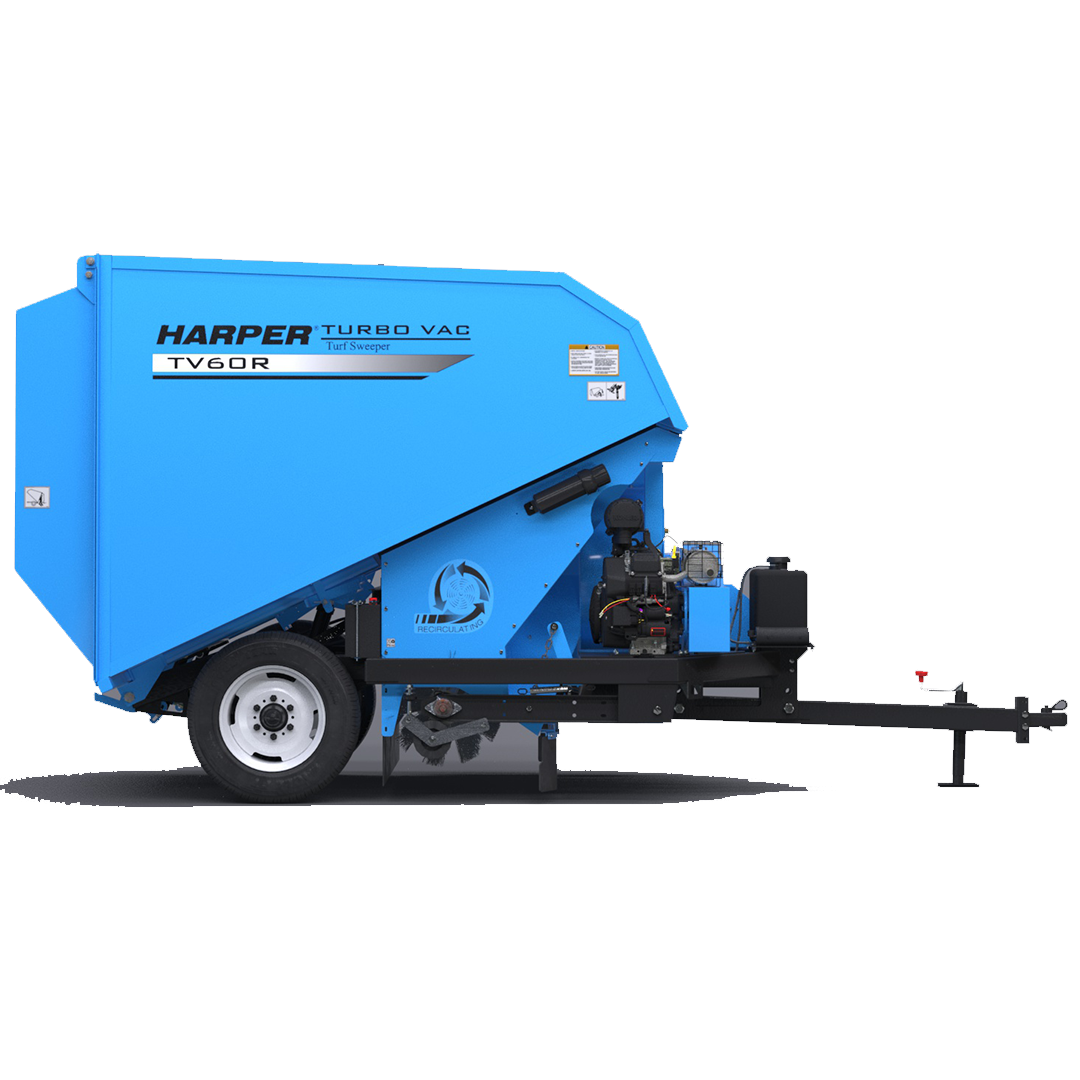

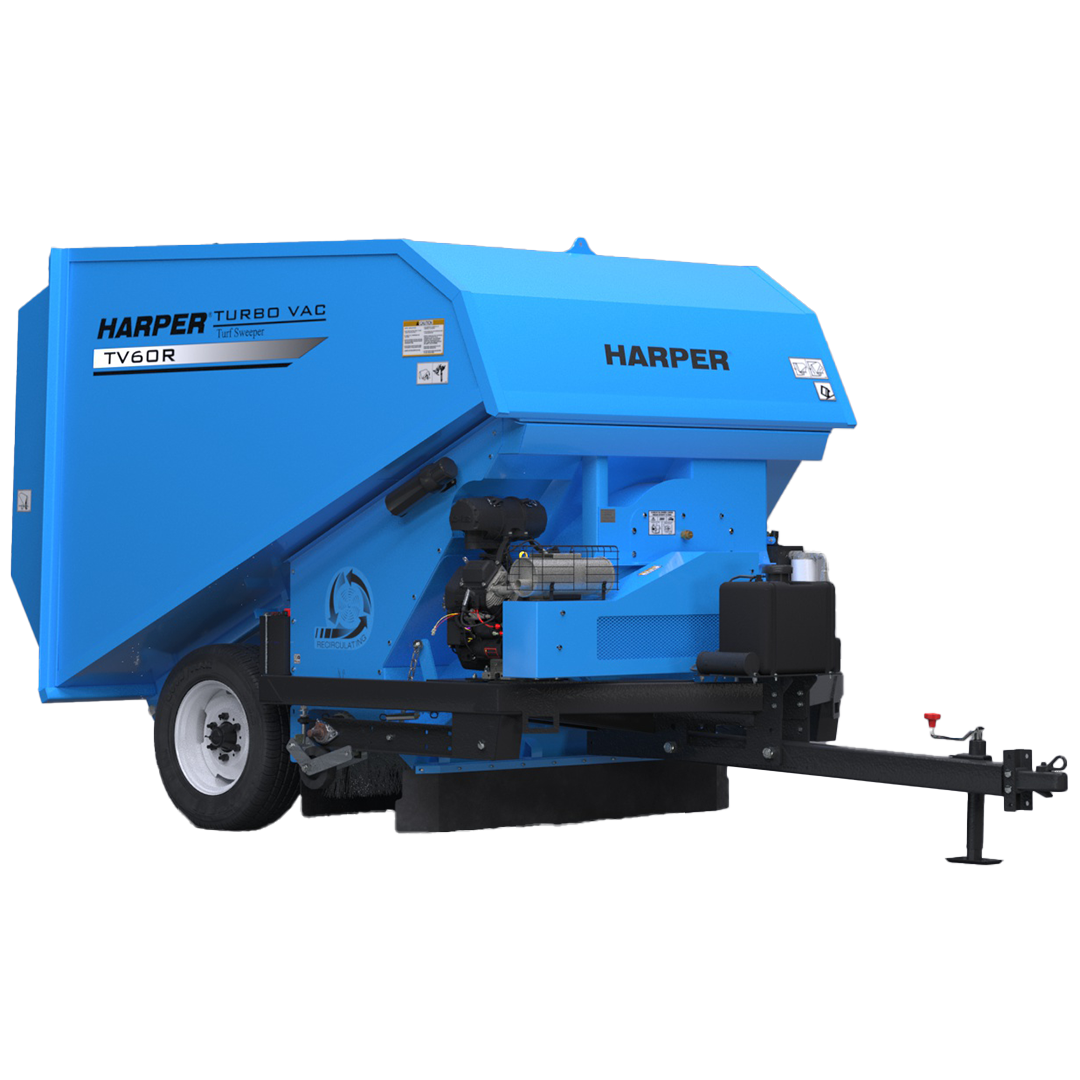

Designed for large area debris removal, the TV60 RE is the perfect solution for picking up grass, leaves, trash and thatch. The unique Recirculating Air System minimizes dust for a clean sweeping environment. The 7 cu. yd. large hopper and wireless remote means less time emptying without ever leaving the driver’s seat. The wide sweeper head follows terrain to maintain a continuous and even coverage across the entire 60 inch width. Clean, quiet and efficient, the TV60 RE is a polished ride from the first pass to the last.

Quick Quote

Name(Required)

More Info

Specifications:
Safety Features: Safety latches on all cylinders for service functions, minimal dust generated and quiet operation. Engine automatically returns to idle while dumping.
Blower Drive: Dual power-band belt driven with electric clutch
Blower Fan: 25" diameter abrasion resistant steel with replaceable machined UHMW, poly liner and 1.5" shaft w/self-aligned bearings supporting both ends
Blower Discharge: Easy access to blower for liner inspection and replacement
Engine: 23.5 HP Kohler gas engine
Hydraulics: Belt driven from engine
Hydraulic Oil: Crown AW46; ISO 46 Hydraulic Oil
Main Frame: 11 gauge welded and reinforced steel tubing
Bearings: Greasable bearings and sealed bearings

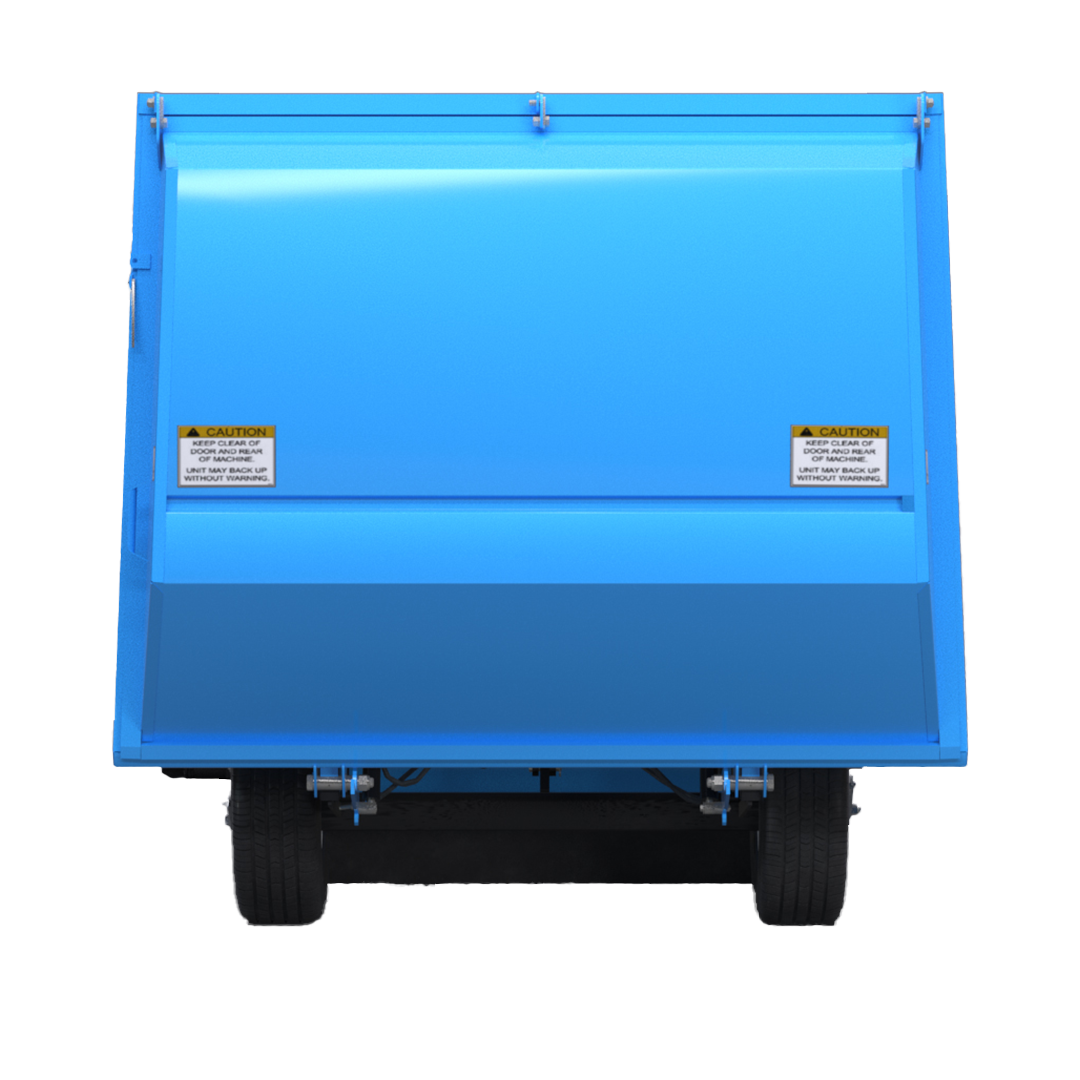

Hopper Capacity: 7 cubic yards
Wheels / Tires: 6-bolt wheels and (2) 26x12 turf tires

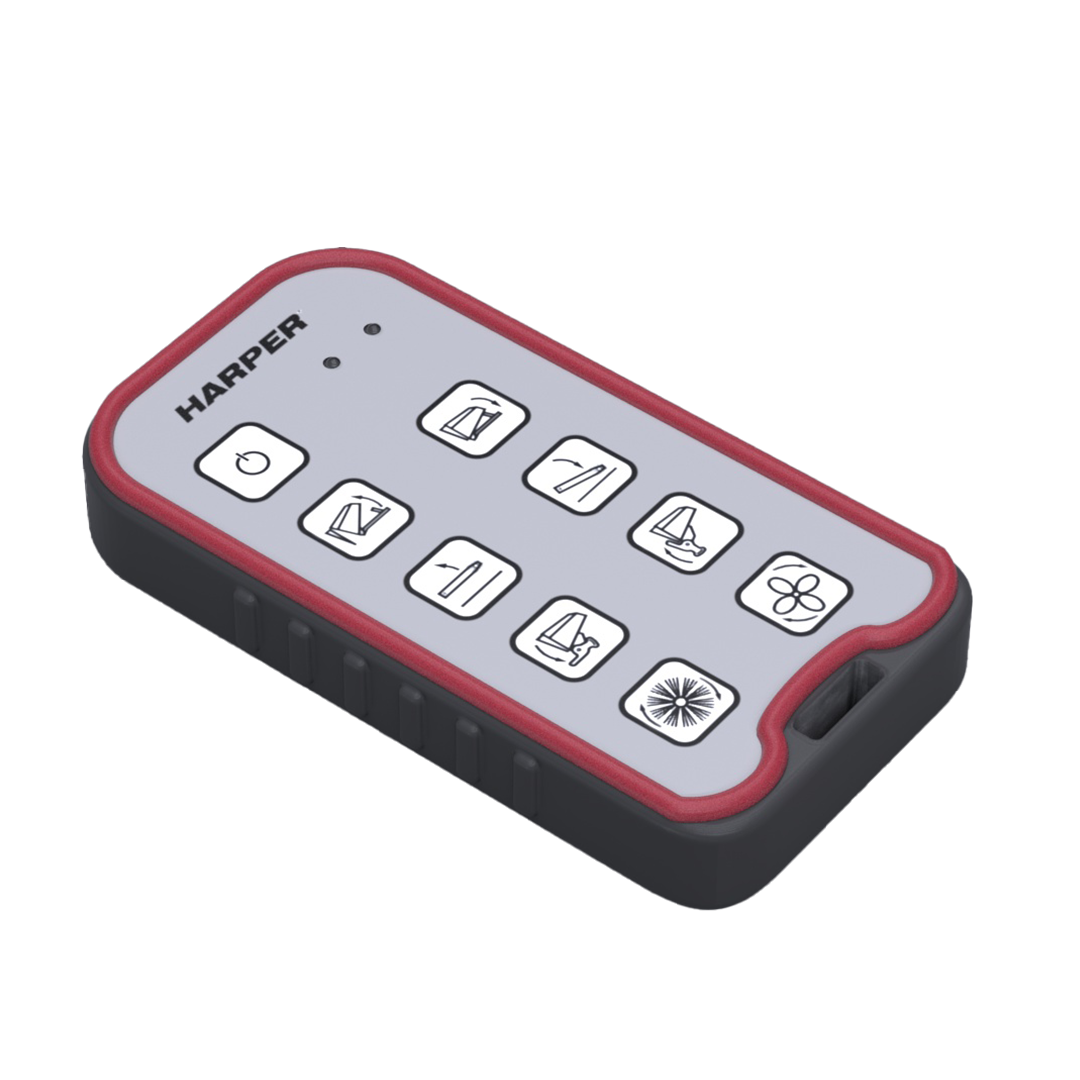

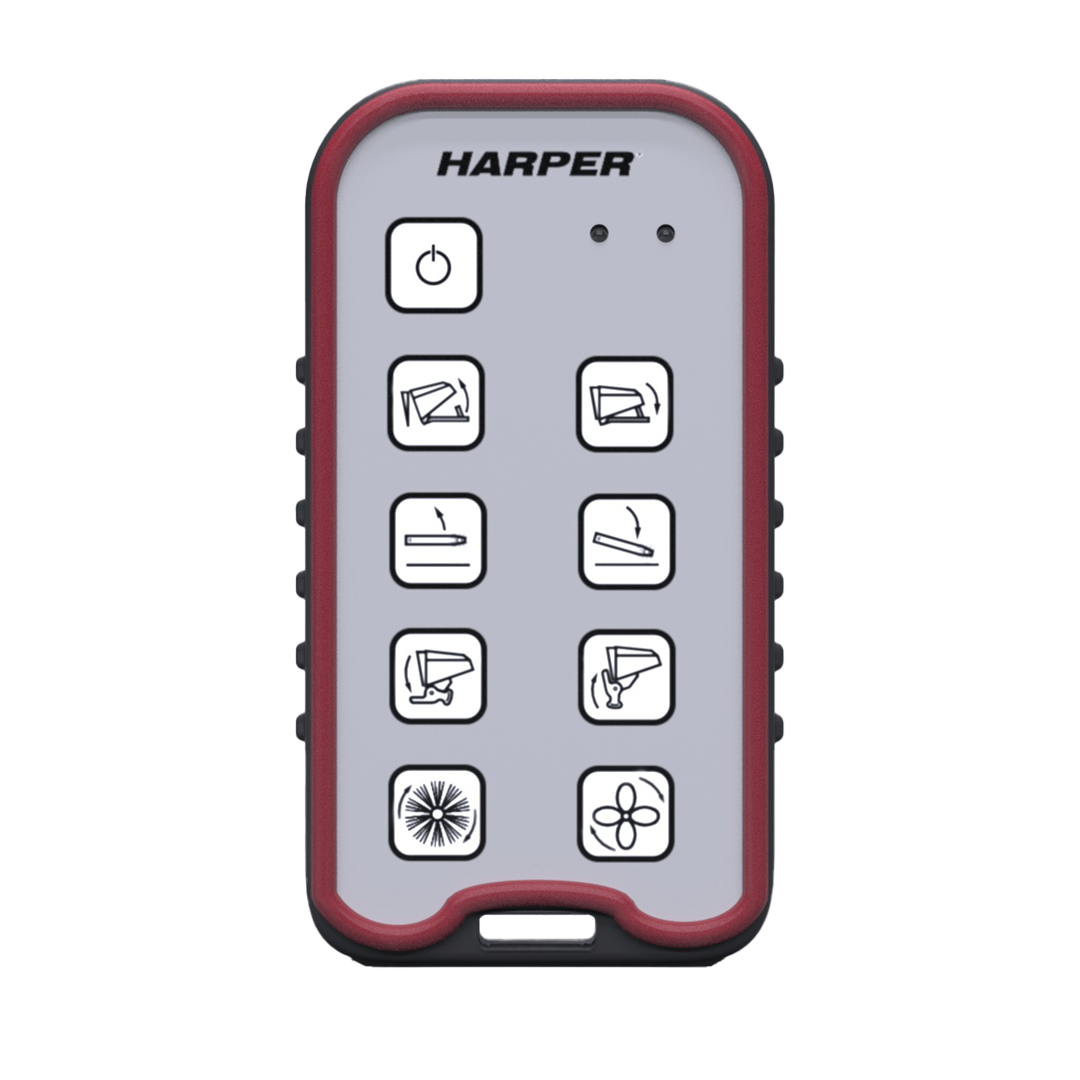

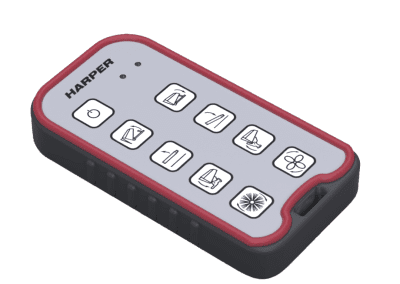

Controls: Wireless remote control from operator seat
Rotors: 17" dia. x 60" with adjustable skids

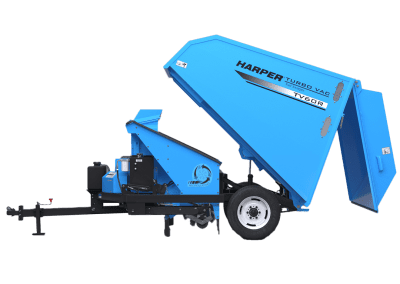

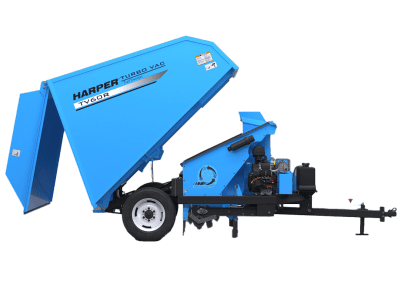

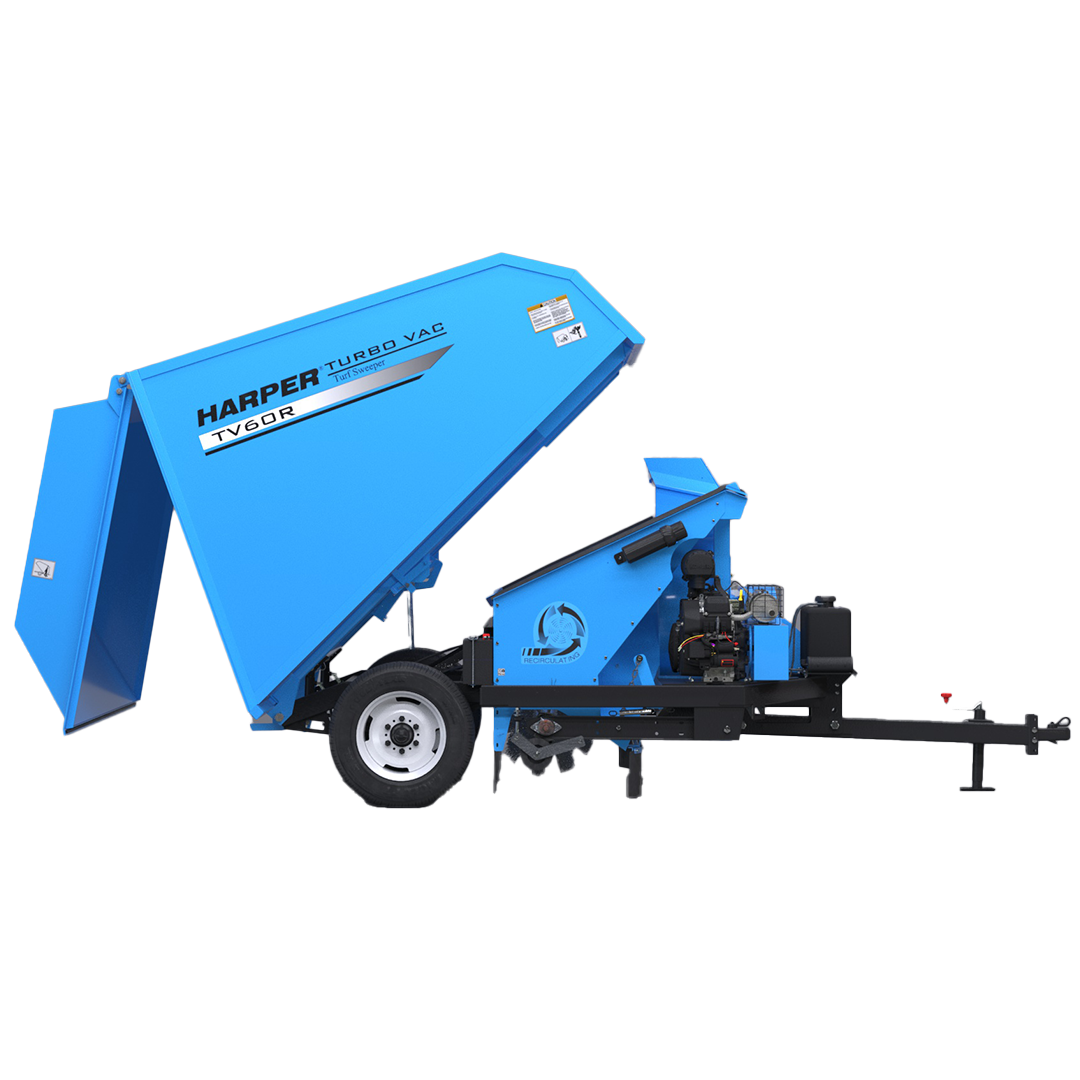

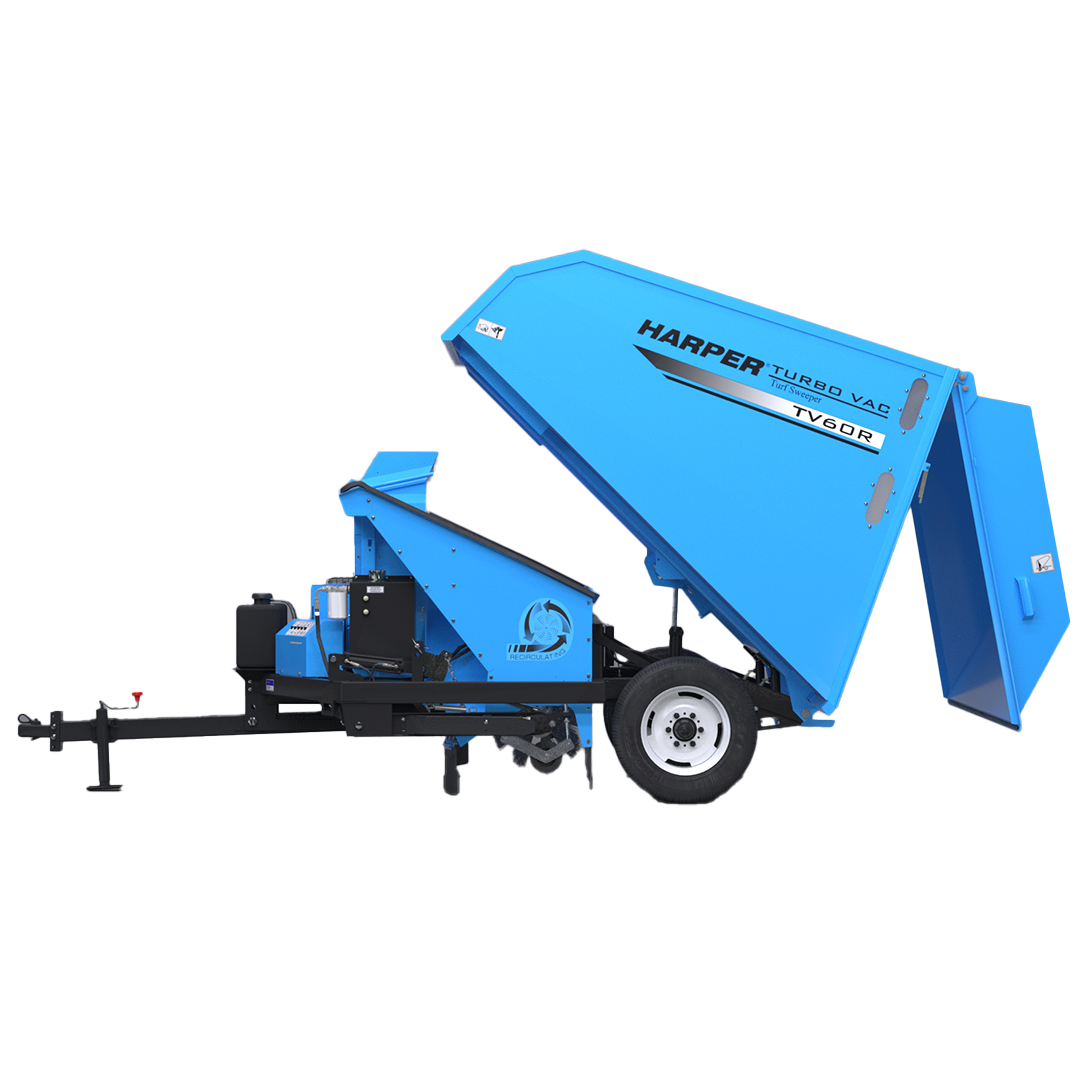

Discharge: Hydraulic dump with hydraulic power latches
Tongue and Hitch: Adjustable height tongue with ball hitch
Paint: Durable 2-part polyurethane
Dimensions: 164" L x 85" W x 85" H
Weight: 2,300 lbs. (1,043 kg)
Options: Brush rotor, rubber finger rotor, and curb brush

Additional information

Weight2300 lbs
Dimensions164 × 85 × 85 in

Designed for large area debris removal, the TV60 RE is the perfect solution for picking up grass, leaves, trash and thatch. The unique Recirculating Air System minimizes dust for a clean sweeping environment. The 7 cu. yd. large hopper and wireless remote means less time emptying without ever leaving the driver’s seat. The wide sweeper head follows terrain to maintain a continuous and even coverage across the entire 60 inch width. Clean, quiet and efficient, the TV60 RE is a polished ride from the first pass to the last.
